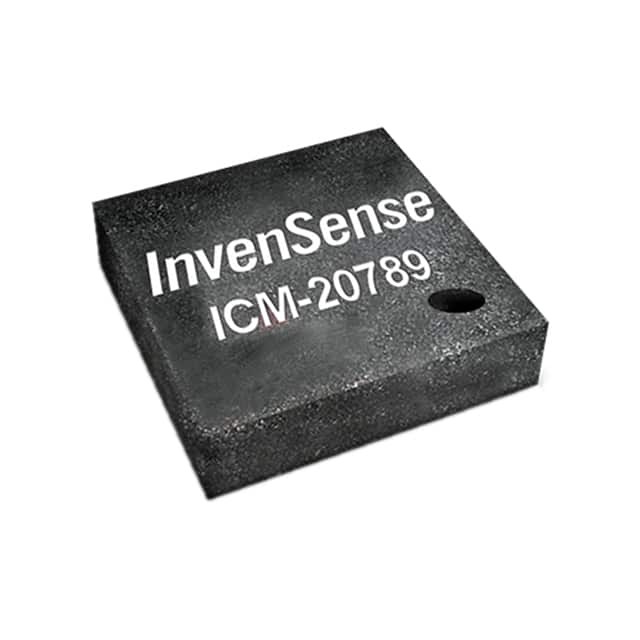

ICM-20789
Same model may have multiple batches, images only for reference.

ICM-20789

Part No ICM-20789
Manufacturer TDK InvenSense
Catalog Motion Sensors - IMU (Inertial Measurement Units)
Description MOTION SENSOR IC
Datasheet
ICM-20789 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Motion Sensors - IMUs (Inertial Measurement Units)
Mfr TDK InvenSense
Series MotionTracking™
Package Tape & Reel
Product Status Obsolete
Output Type I2C
Temperature Range - Operating -40°C ~ 85°C
Package / Case 24-LFLGA Module
Supplier Device Package 24-LGA (4x4)
Mounting Type Surface Mount
Standard Package 3,000 pcs
MSL Level 3 (168 Hours)
ECCN 7A994
HTSUS 8542.39.0001
Win Source Part Number 848294-ICM-20789
Ultra Librarian 3D Model Ultra Librarian ICM-20789 CAD Model

Description

The ICM-20789 is an obsolete motion sensor inertial measurement unit (IMU) from TDK InvenSense.

  • Series: MotionTracking™
  • Output Type: I2C
  • Mounting Type: Surface Mount
  • Operating Temperature: -40°C to 85°C
  • Product Status: Obsolete
