Products specifications Report Issue?

Category Sensors, Transducers - Motion Sensors - IMUs (Inertial Measurement Units)
Mfr STMicroelectronics
Series iNEMO
Package Tape & Reel
Product Status Active
Sensor Type Accelerometer, Gyroscope, 6 Axis
Output Type I2C, SPI
Temperature Range - Operating -40°C ~ 85°C

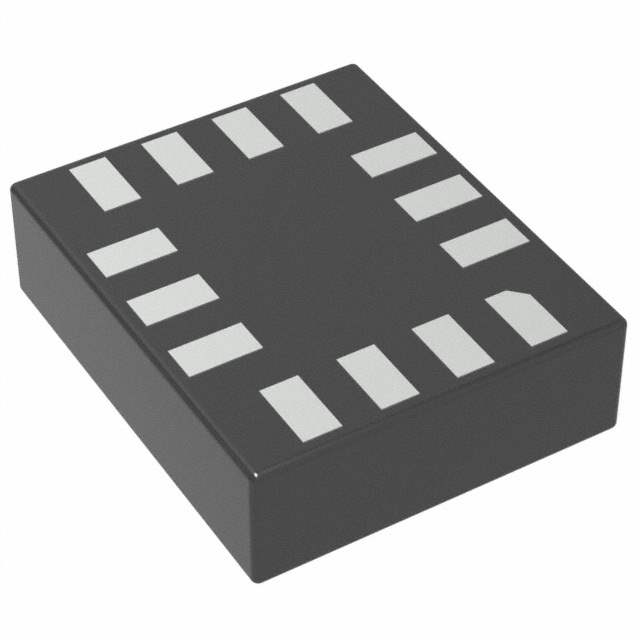

Package / Case 14-VFLGA Module
Supplier Device Package 14-LGA (2.5x3)
Mounting Type Surface Mount
Base Product Number LSM6
Standard Package 5,000 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 851128-LSM6DSOXTR
Ultra Librarian 3D Model Ultra Librarian LSM6DSOXTR CAD Model

Description

LSM6DSOXTR - Inertial Module from STMicroelectronics

The LSM6DSOXTR is a state-of-the-art inertial module from STMicroelectronics, designed to cater to the demanding needs of modern mobile applications, IoT devices, and industrial solutions. This compact, high-precision module combines a 3D digital accelerometer and a 3D digital gyroscope in a single package, providing 6-axis motion sensing through a high-performance, low-power design.

Key Features

  • Advanced Motion Detection: The LSM6DSOXTR offers advanced motion detection capabilities, including free-fall, wakeup, 6D/4D orientation, click, and double-click events, making it ideal for a wide range of applications.
  • Machine Learning Core: Equipped with a machine learning core, this inertial module can perform basic gesture recognition and motion pattern detection directly on-chip, reducing the processing load on the system's main application processor.
  • High Precision: With high-resolution outputs for both the accelerometer and gyroscope, the LSM6DSOXTR provides precise measurements, making it suitable for applications that require accurate motion tracking and analysis.
  • Low Power Consumption: The module is designed for efficiency, offering multiple power modes to balance performance and power consumption according to the application's requirements.
  • Enhanced Connectivity: The LSM6DSOXTR supports both I2C and SPI communication interfaces, allowing for easy integration with a variety of microcontrollers and processors.

Applications

The versatility of the LSM6DSOXTR makes it an excellent choice for a broad range of applications. It is particularly well-suited for:

  • Smartphones and tablets
  • Wearable devices
  • Game and virtual reality controllers
  • Industrial IoT and robotics
  • Drones and unmanned vehicles
  • Health and fitness trackers

With its advanced features, the LSM6DSOXTR provides developers with a powerful tool for enhancing the interactivity and intelligence of their devices. Its small form factor and low power consumption make it an ideal choice for portable and battery-powered applications, while its robust performance ensures reliable operation in even the most challenging environments.

Whether you're developing the next generation of smart devices or looking to add sophisticated motion tracking to your industrial applications, the LSM6DSOXTR from STMicroelectronics is a versatile and reliable choice that offers a perfect balance of power and performance.
