Products specifications Report Issue?

Category Sensors, Transducers - Motion Sensors - IMUs (Inertial Measurement Units)
Mfr Maxim Integrated
Package Tray
Product Status Obsolete
Sensor Type Accelerometer, Gyroscope, 6 Axis
Output Type I2C
Temperature Range - Operating -40°C ~ 85°C (TA)

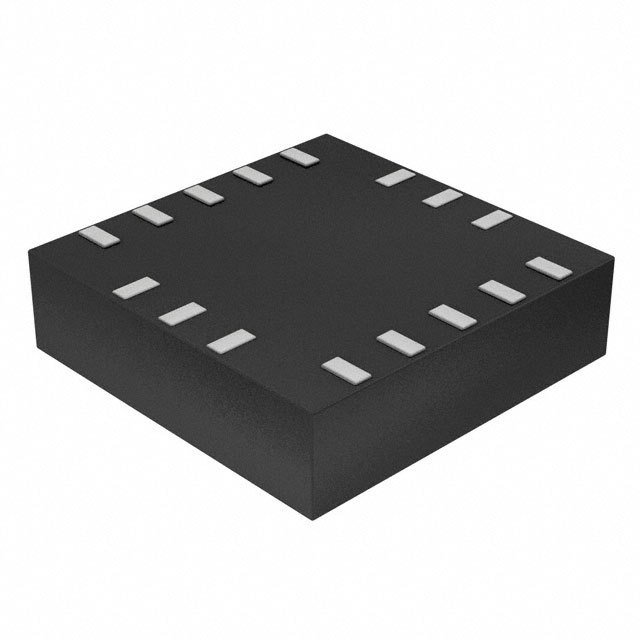

Package / Case 16-VFLGA Module
Supplier Device Package 16-LGA (3x3)
Mounting Type Surface Mount
Base Product Number MAX211
Standard Package 1 pcs
MSL Level 3 (168 Hours)
ECCN 7A994
HTSUS 8543.70.9860
Win Source Part Number 209650-MAX21100+
Ultra Librarian 3D Model Ultra Librarian MAX21100+ CAD Model

Description

Introducing the MAX21100+: Precision 6DoF Inertial Measurement Unit

The MAX21100+ from Maxim Integrated is a state-of-the-art, 6 Degrees of Freedom (6DoF) Inertial Measurement Unit (IMU) that combines a 3-axis gyroscope and a 3-axis accelerometer to deliver high-precision motion sensing in a compact package. Designed for efficiency and performance, the MAX21100+ is ideally suited for a wide range of applications, including drone flight controls, robotics, motion tracking, and platform stabilization.

Key Features:

  • High Performance: The device offers low noise and high sensitivity, with a gyroscope sensitivity of up to ±2000 degrees per second and an accelerometer range of ±2g to ±16g, ensuring accurate motion detection.
  • Compact Design: With its small footprint, the MAX21100+ is perfect for space-constrained applications, offering high functionality without the need for additional components or complex configurations.
  • Low Power Consumption: Maxim Integrated has engineered the MAX21100+ with power efficiency in mind, making it an excellent choice for battery-powered devices where longevity is critical.
  • Advanced Calibration: The device comes factory-calibrated, saving time and resources in system design and ensuring consistent performance across different units.
  • Flexible Communication: Featuring both I2C and SPI interfaces, the MAX21100+ allows for easy integration into existing systems with multiple communication options.
  • Robust Operation: Built to withstand harsh environments, the IMU operates over a wide temperature range and is resistant to vibrations and shock, ensuring reliability in demanding situations.

Applications:

  • Unmanned Aerial Vehicles (UAVs)
  • Robotics and Automation Systems
  • Wearable Motion Tracking Devices
  • Camera and Platform Stabilization
  • Navigation and Telematics

The MAX21100+ from Maxim Integrated is more than just a sensor; it's a versatile and reliable solution for integrating sophisticated motion sensing capabilities into your next project. With its combination of high precision, compact size, and low power consumption, the MAX21100+ stands out as an exceptional choice for designers and engineers looking to push the boundaries of what's possible with motion technology.
