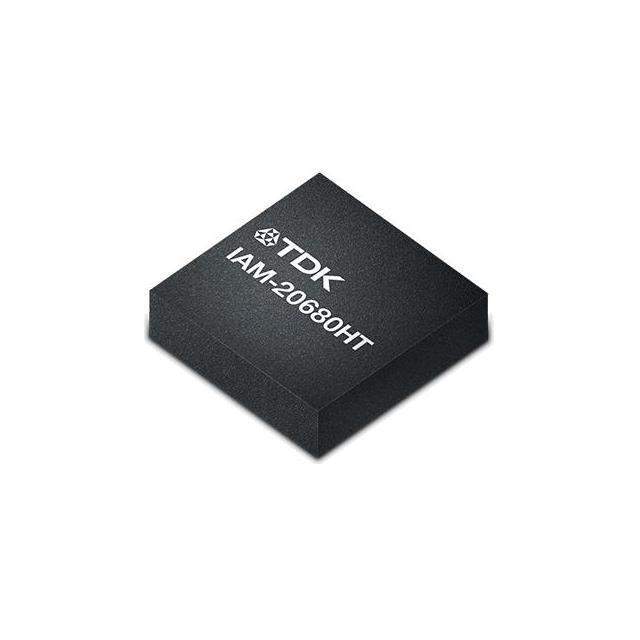

The IAM-20680HT is a high-temperature 6-Axis MEMS MotionTracking device from TDK InvenSense. This device combines a 3-axis gyroscope and a 3-axis accelerometer in a small package. It's designed for applications that require accurate and reliable motion sensing, even in harsh environments with elevated temperatures. The 'HT' designation indicates its capability to withstand high operating temperatures.

Applications

• Downhole Drilling: Used in drilling equipment to provide accurate directional data in high-temperature underground environments.
• Industrial Robotics: Provides motion tracking and stability control for robots operating in high-temperature industrial processes.
• Automotive: Incorporated into automotive systems that require robust motion sensing in extreme conditions, such as engine compartments or braking systems.
• Aerospace: Used in aerospace applications where high reliability and temperature resistance are critical, like flight control systems or engine monitoring.
• Oil and Gas Exploration: Employed in exploration equipment that operates in harsh, high-temperature environments.

Features

• 6-Axis Motion Tracking: Integrates a 3-axis gyroscope and a 3-axis accelerometer for complete motion sensing.
• High-Temperature Operation: Designed to operate reliably at elevated temperatures (typically up to 105°C or higher).
• Low Power Consumption: Optimized for power efficiency, extending battery life in portable applications.
• Digital Output: Provides motion data via a digital interface (e.g., I2C or SPI).
• Programmable Full-Scale Ranges: Allows users to customize the sensing range of the gyroscope and accelerometer to suit their application.
• Factory Calibration: Calibrated at the factory for accurate and consistent performance.
• Small Package Size: Compact footprint for easy integration into space-constrained designs.
• Embedded Temperature Sensor: Provides an internal temperature reading for compensation and monitoring.

Benefits

• Accurate Motion Sensing: Provides precise and reliable motion data, even in challenging environments.
• Robust Performance: Designed to withstand high temperatures and vibrations, ensuring long-term reliability.
• Simplified System Design: Integrated 6-axis sensing simplifies system design and reduces component count.
• Reduced Power Consumption: Low power consumption extends battery life in portable applications.
• Easy Integration: Digital output and compact package facilitate easy integration into various systems.
• Improved Stability: Temperature stability ensures consistent performance over a wide temperature range.

Technical Specifications (Typical):

• Gyroscope Range: ±250, ±500, ±1000, ±2000 dps
• Accelerometer Range: ±2g, ±4g, ±8g, ±16g
• Operating Temperature: -40°C to +105°C (or higher, check datasheet)
• Digital Interface: I2C, SPI
• Supply Voltage: 1.71V to 3.6V
• Package: LGA
