Products specifications Report Issue?

Category Sensors, Transducers - Motion Sensors - IMUs (Inertial Measurement Units)
Mfr STMicroelectronics
Series Automotive, AEC-Q100
Package Tape & Reel
Product Status Active
Sensor Type Accelerometer, Gyroscope, Temperature, 6 Axis
Output Type I2C, SPI
Temperature Range - Operating -40°C ~ 105°C

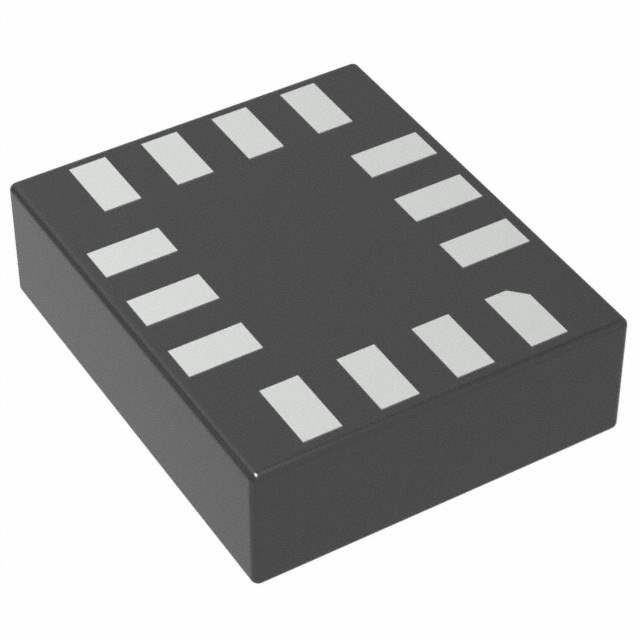

Package / Case 14-VFLGA Module
Supplier Device Package 14-LGA (2.5x3)
Mounting Type Surface Mount
Base Product Number ASM330
Standard Package 5,000 pcs
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 847202-ASM330LHHTR
Ultra Librarian 3D Model Ultra Librarian ASM330LHHTR CAD Model

Description

ASM330LHHTR from STMicroelectronics is an inertial measurement unit in the Motion Sensors - IMU category, intended for designs that need compact motion tracking, orientation awareness, and system movement analysis. Components in this class are commonly evaluated for industrial equipment, consumer electronics, wearables, smart devices, asset tracking, robotics, and embedded sensing platforms where reliable inertial data supports control, stabilization, or user interaction. For engineers, this device is positioned as a practical option when integrating motion intelligence into space-constrained PCB designs while leveraging a well-known semiconductor supplier. The current lifecycle status for ASM330LHHTR is information not available, so teams should confirm product longevity and last-time-buy risk directly with STMicroelectronics or authorized distributors before locking it into new designs. RoHS compliance information is also not available in the provided data. Engineers should verify environmental compliance, including RoHS and any related material declarations, through the latest datasheet, compliance certificate, or manufacturer portal.
