Same model may have multiple batches, images only for reference.

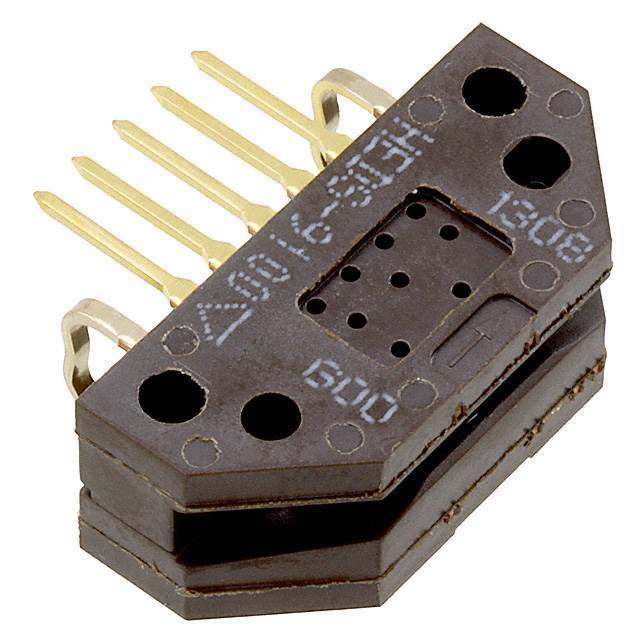

HEDS-9100#G00 Real Image
Same model may have multiple batches, images only for reference.

HEDS-9100#G00

Part No HEDS-9100#G00
Manufacturer Broadcom Limited
Catalog Encoders
Description ENCODER MODULE 2CH 360CPR / Optical Encoder Rotary Incremental Straight Digital Through Hole PC Pin 360CPR
Datasheet
HEDS-9100#G00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Broadcom Limited
Series HEDS
Encoder Type Optical
Output Type Quadrature (Incremental)
Pulses per Revolution 360
Operating Supply Voltage 5V
Actuator Type Codewheel Not Included
Detent No
Built in Switch No
Mounting Chassis Mount
Orientation Vertical
Termination Style Terminal Pins
Win Source Part Number 775883-HEDS-9100#G00
Popularity Medium
Supply and Demand Status Limited
Quantity per package 100
Family Name HEDS-9100
Introduction Date May 31, 2005
Country of Origin Malaysia
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian HEDS-9100#G00 CAD Model

Description

The Broadcom Limited 775883-HEDS-9100#G00 is an optical encoder with a quadrature (incremental) output type from Broadcom Limited.

  • Output Type: Quadrature (incremental)
  • Orientation: Vertical
  • Mounting Type: Chassis mount
  • Series Name: HEDS
  • Family Name: HEDS-9100
  • Operating Supply Voltage: 5V
  • Pulses Per Revolution: 360
  • Detent: No
  • Rotational Life: Cycles min
  • Termination Style: Terminal pins
  • Package Quantity: 100
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Introduction Date: May 31, 2005
  • Estimated EOL Date: 2027
  • Country of Origin: Malaysia
