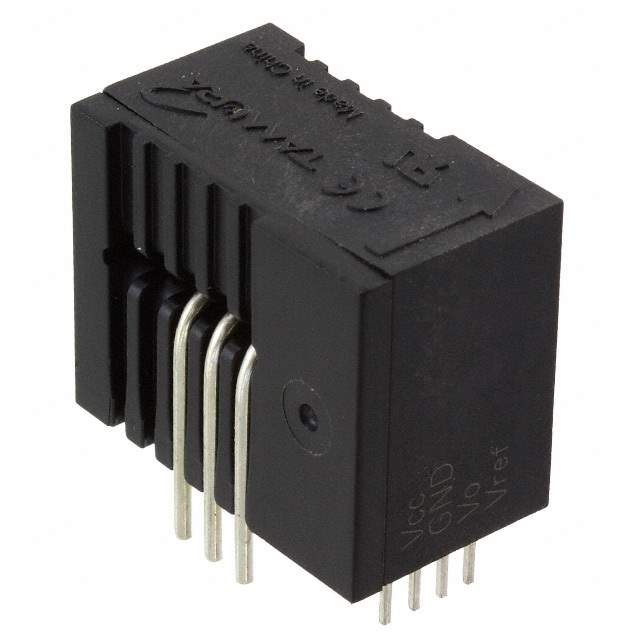

F02P050S05L Real Image
Same model may have multiple batches, images only for reference.

F02P050S05L

Part No F02P050S05L
Manufacturer Tamura
Catalog Current Transducers
Description SENSOR
Datasheet
F02P050S05L Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Sensors, Transducers
Manufacturer Tamura
Status Active
For Measuring AC
Sensor Type Flux Gate, Closed Loop
Current - Sensing 50A
Number of Channels 1
Output Ratiometric, Voltage
Sensitivity 12.5mV/A
Frequency 300kHz
Linearity ±1%
Accuracy ±0.9%
Supply Voltage - Operating 5V
Response Time 0.3μs
Current - Supply (Max) 55mA
Temperature Range - Operating -40°C to 105°C
Polarization Bidirectional
Mounting Through Hole
Win Source Part Number 1080946-F02P050S05L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian F02P050S05L CAD Model

Description

The 1080946-F02P050S05L is a reliable and efficient flux gate closed-loop sensor manufactured by Tamura.

  • Category: sensors and transducers
  • Suitability: suitable for various applications
  • Design: designed to provide accurate and reliable measurements
  • Popularity: medium
  • Supply and Demand: balanced
  • Installation and Use: easy to install and use
  • Features: comes with a series of features that make it a practical solution for many different applications
