CM04RC02T Taiyo Yuden
Same model may have multiple batches, images only for reference.

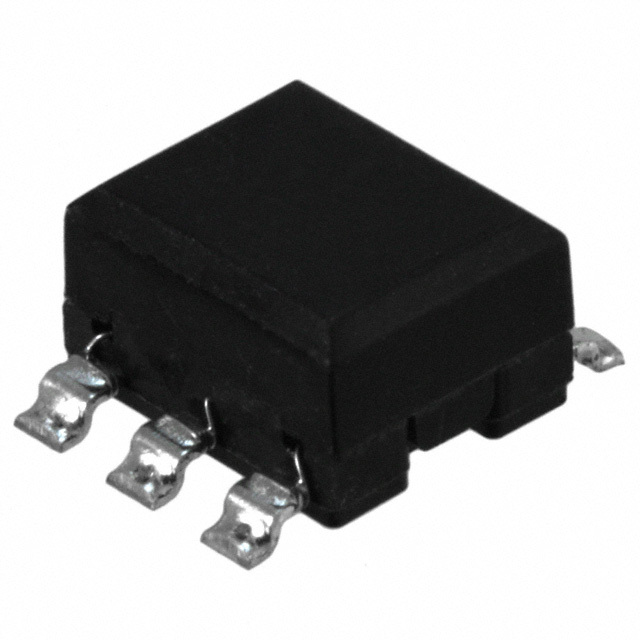

CM04RC02T

Part No CM04RC02T
Manufacturer Taiyo Yuden
Catalog Common Mode Chokes
Description CMC 500MA 3LN 1 KOHM SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Taiyo Yuden
Packaging Reel - TR
Status Obsolete(EOL)
Filter Type Power, Signal Line
Number of Lines 3
Impedance @ Frequency 1 kOhm @ 100MHz
Current Rating (Max) 500mA
DC Resistance (DCR) (Max) 180 mOhm
Voltage Rating - DC 50V
Temperature Range - Operating -25°C to 105°C
Mounting SMD (SMT)
Height (Max) 0.181" (4.60mm)
Dimension 6-SMD, Gull Wing
Win Source Part Number 099657-CM04RC02T
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 1k pcs
Ultra Librarian 3D Model Ultra Librarian CM04RC02T CAD Model

Description

Overview

The CM04RC02T is a highly accurate resistor array critical for precision analog circuits. Its configuration provides exceptional matching and drift characteristics, making it suitable for a wide range of precision applications.

Applications

  • Precision Analog Circuits
  • Voltage Dividers
  • Instrumentation Amplifiers
  • Calibration Equipment

Features and Benefits

  • Matched Resistors: Ensures consistent performance with tight ratio tolerances.
  • High Stability: Offers excellent long-term stability and low noise.
  • Small Footprint: Ideal for compact circuits requiring minimal space.

Additional Details

The CM04RC02T's robust design and precision manufacturing techniques deliver unmatched performance for critical measurement and control applications, supporting the demands of modern electronic systems.
