Overview of LMD18400N/NOPB

The LMD18400N/NOPB is a high-performance, quadruple half-H bridge driver designed and manufactured by Texas Instruments. This integrated circuit is specifically engineered to drive inductive loads such as relays, solenoids, DC and bipolar stepping motors, as well as other high-current/high-voltage loads in positive-supply applications.

Key Features

• High Voltage Capability: The LMD18400N/NOPB is capable of operating at supply voltages up to 28V, making it suitable for a wide range of applications.
• High Output Current: Each half-bridge can deliver up to 600 mA of output current, providing the necessary drive for many high-power applications.
• Thermal Shutdown Protection: The device includes an internal thermal shutdown feature that protects the IC from overheating, enhancing the reliability and longevity of the product.
• Low Power Consumption: With a low quiescent current, the LMD18400N/NOPB is an energy-efficient solution for driving loads.
• Individual Half-Bridge Control: Each half-bridge can be controlled separately, providing flexibility and precision in various applications.

Applications

The versatile nature of the LMD18400N/NOPB makes it ideal for a broad spectrum of applications. It is commonly used in:

• Automotive systems for driving motors and actuators
• Industrial automation for controlling stepper motors and solenoids
• Consumer electronics where motor control is required
• Robotics for precise motor movement and positioning

Quality and Reliability

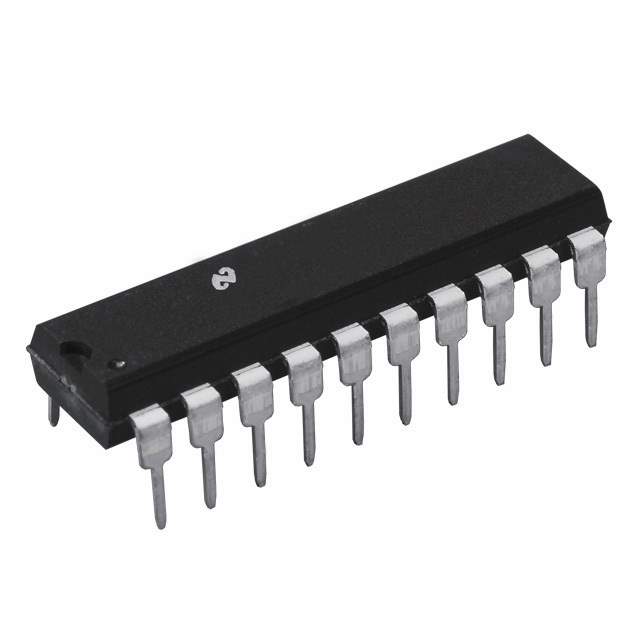

As with all Texas Instruments products, the LMD18400N/NOPB is designed to meet the highest quality and reliability standards. It comes in a 20-pin PDIP (Plastic Dual-In-Line Package) which is easy to integrate into various PCB designs. The NOPB designation indicates that the product is lead-free and RoHS compliant, aligning with environmental standards and regulations.

Conclusion

The LMD18400N/NOPB from Texas Instruments stands out as a robust and reliable solution for driving high-current inductive loads. Its combination of high voltage and current capabilities, along with thermal protection and individual bridge control, make it a versatile choice for designers and engineers looking to develop advanced electronic systems.
