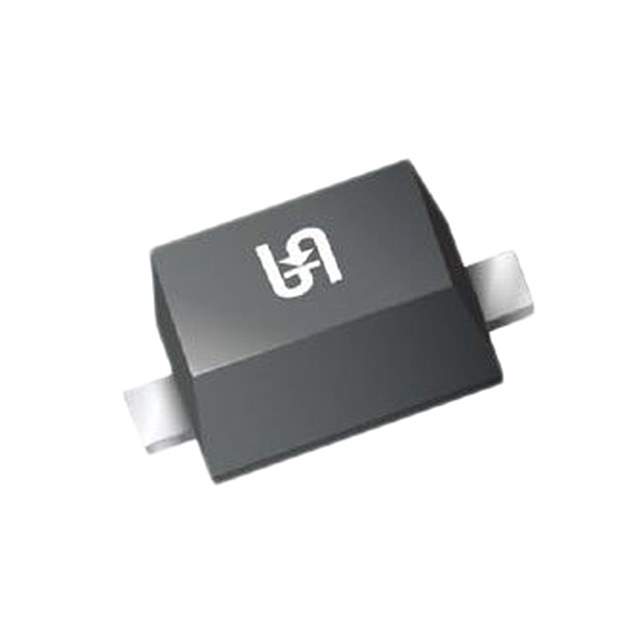

The UDZS8V2B RR is a Zener diode manufactured by Taiwan Semiconductor. It is designed to provide a stable voltage reference and overvoltage protection in electronic circuits. As a Zener diode, it maintains a consistent voltage across its terminals when reverse-biased beyond its Zener voltage.

Applications

• Voltage Regulation
• Overvoltage Protection
• Voltage Clamping
• Transient Voltage Suppression (TVS)
• Clipping Circuits

Features

• Zener Voltage: 8.2V (Nominal)
• Power Dissipation: Typically in the range of 200-500mW (refer to datasheet for precise value)
• Low Reverse Leakage Current
• High Surge Current Capability
• Surface Mount Package (e.g., SOD-323)

Benefits

• Provides a Stable Voltage Reference
• Protects Sensitive Circuits from Overvoltage
• Cost-Effective Voltage Regulation Solution
• Compact Size for High-Density PCB Layouts
• Reliable Performance

Additional Details

The UDZS8V2B RR Zener diode operates by leveraging the Zener effect, where a high electric field in the depletion region of a reverse-biased PN junction causes electrons to tunnel through the barrier, leading to a controlled reverse current and a stable voltage. This diode is commonly employed in power supplies, instrumentation, and communication equipment to regulate voltage levels or safeguard components from voltage spikes. The small surface mount package allows for efficient integration into modern, compact electronic devices. For detailed specifications, including maximum power dissipation, reverse leakage current, and temperature characteristics, consulting the manufacturer's datasheet is essential. The 'RR' suffix might indicate a specific packaging or reel option for automated assembly processes. When utilized for overvoltage protection, the Zener diode effectively clamps the voltage to its Zener voltage level, diverting excessive current and preventing damage to downstream circuitry. The UDZS8V2B RR is likely housed in a small outline diode (SOD) package suitable for automated assembly lines.
