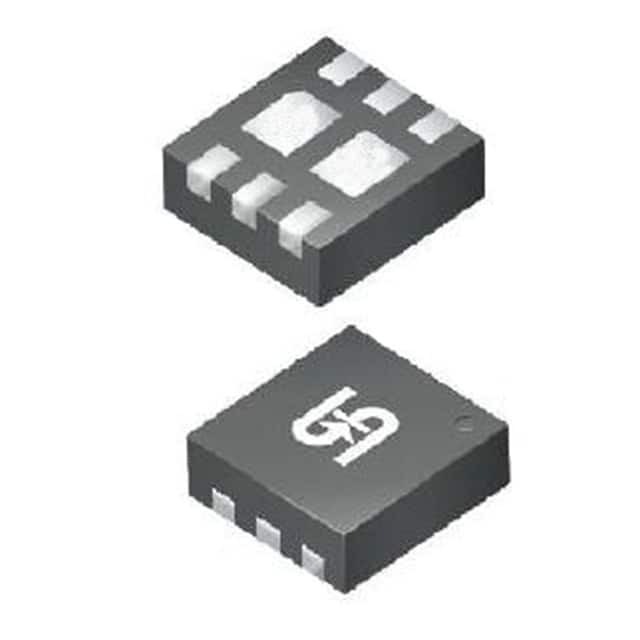

TSM500P02DCQ

Get a Quote

Part No	TSM500P02DCQ
Manufacturer	Taiwan Semiconductor
Catalog	FETs - Arrays
Description	-20V, -4.7A, DUAL P-CHANNEL POWE
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - FET, MOSFET Arrays
Mfr	Taiwan Semiconductor Corporation
Series	-
Package	Tape & Reel
Product Status	Active
Technology	MOSFET (Metal Oxide)
Configuration	2 P-Channel
FET Feature	Standard
Drain to Source Voltage (Vdss)	20V
Current - Continuous Drain (Id) @ 25°C	4.7A (Tc)
Rds On (Max) @ Id, Vgs	50mOhm @ 3A, 4.5V
Vgs(th) (Max) @ Id	0.8V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	13nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	1230pF @ 10V
Power - Max	620mW (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	6-VDFN Exposed Pad
Supplier Device Package	6-TDFN (2x2)
Base Product Number	TSM500
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.21.0095
Win Source Part Number	1380169-TSM500P02DCQ
Ultra Librarian 3D Model	Ultra Librarian TSM500P02DCQ CAD Model

Description

The 1380169-TSM500P02DCQ is a MOSFET transistor array from Taiwan Semiconductor Corporation.

Channel Type: P-Channel
Drain to Source Voltage: 20V
Continuous Drain Current: 4.7A @ 25°C
On-Resistance: 50mOhm @ 3A and 4.5V
Gate Threshold Voltage: 0.8V @ 250μA
Gate Charge: 13nC @ 4.5V
Input Capacitance: 1230pF @ 10V
Mounting Type: Surface Mount
Package: 6-VDFN Exposed Pad
Power Rating: 620mW
Operating Temperature: -55°C to 150°C
