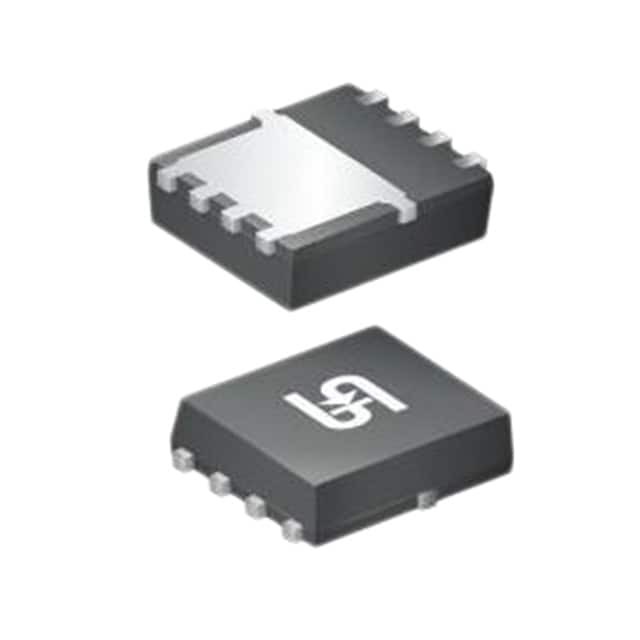

TSM200N03DPQ33

Name: TSM200N03DPQ33
Brand: Taiwan Semiconductor
SKU: 1380161
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	TSM200N03DPQ33
Manufacturer	Taiwan Semiconductor
Catalog	FETs - Arrays
Description	30V, 20A, DUAL N-CHANNEL POWER M
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Transistors - FETs, MOSFETs - FET, MOSFET Arrays
Mfr	Taiwan Semiconductor Corporation
Series	-
Package	Tape & Reel
Product Status	Active
Technology	MOSFET (Metal Oxide)
Configuration	2 N-Channel
FET Feature	Standard
Drain to Source Voltage (Vdss)	30V
Current - Continuous Drain (Id) @ 25°C	20A (Tc)
Rds On (Max) @ Id, Vgs	20mOhm @ 10A, 10V
Vgs(th) (Max) @ Id	2.5V @ 250µA
Gate Charge (Qg) (Max) @ Vgs	4.1nC @ 4.5V
Input Capacitance (Ciss) (Max) @ Vds	345pF @ 25V
Power - Max	20W (Tc)
Temperature Range - Operating	-55°C ~ 150°C (TJ)
Mounting Type	Surface Mount
Package / Case	8-PowerWDFN
Supplier Device Package	8-PDFN (3x3)
Base Product Number	TSM200
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.29.0095
Win Source Part Number	1380161-TSM200N03DPQ33
Ultra Librarian 3D Model	Ultra Librarian TSM200N03DPQ33 CAD Model

Description

The TSM200N03DPQ33 is a N-Channel MOSFET array manufactured by Taiwan Semiconductor Corporation.

Drain to Source Voltage (Vdss): 30V
Continuous Drain Current (Id): 20A @ 25°C
On-Resistance (Rds On): 20mOhm @ 10A and 10V gate-source voltage (Vgs)
Gate Threshold Voltage (Vgs(th)): 2.5V @ 250μA
Gate Charge (Qg): 4.1nC @ 4.5V gate-source voltage (Vgs)
Input Capacitance (Ciss): 345pF @ 25V drain-source voltage (Vds)
Maximum Power Dissipation: 20W
Package: 8-PowerWDFN
RoHS Compliant: Yes
