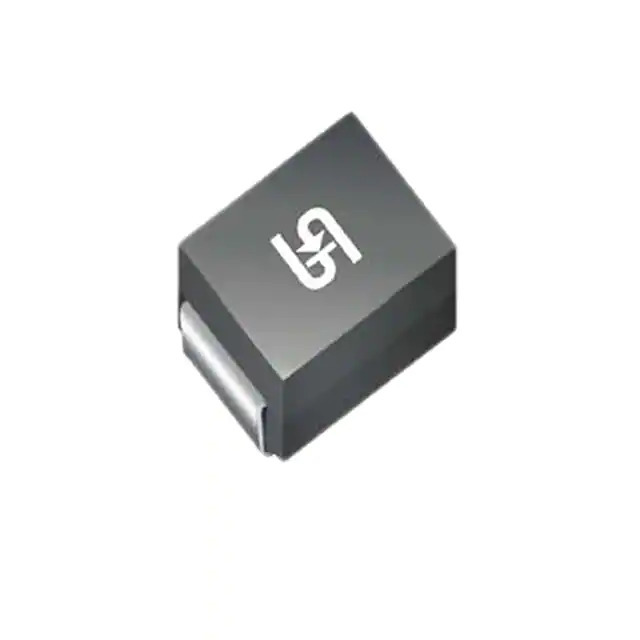

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Taiwan Semiconductor Corporation
Series -
Package Tape & Reel
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 200 V
Current - Average Rectified (Io) 5A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 50 ns
Current - Reverse Leakage @ Vr 10 µA @ 200 V
Capacitance @ Vr, F 80pF @ 4V, 1MHz
Mounting Type Surface Mount
Package / Case DO-214AB, SMC
Supplier Device Package DO-214AB (SMC)
Operating Temperature - Junction -55°C ~ 150°C
Base Product Number HS5D
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1366971-HS5D
Ultra Librarian 3D Model Ultra Librarian HS5D CAD Model

Description

The HS5D is a standard rectifier diode from Taiwan Semiconductor Corporation. It has a maximum DC reverse voltage (Vr) of 200V and an average rectified current (Io) of 5A.

  • Maximum DC Reverse Voltage (Vr): 200V
  • Average Rectified Current (Io): 5A
  • Recovery Time: less than 500ns
  • Reverse Recovery Time (trr): 50ns
  • Mounting Type: Surface Mount
  • Package/Case: DO-214AB (SMC)
  • Capacitance: 80pF @ 4V and 1MHz
  • Operating Temperature: -55°C to 150°C
  • Product Status: Active
