Product Overview: VNH5180ATR-E by STMicroelectronics

The VNH5180ATR-E, crafted by the renowned semiconductor manufacturer STMicroelectronics, is a high-quality automotive-grade H-bridge driver designed for the precise control of DC motors. This advanced component is part of STMicroelectronics' esteemed lineup of power management integrated circuits, tailored to meet the rigorous demands of the automotive industry.

Key Features

• High Current Handling: The VNH5180ATR-E is capable of driving a high current load, with a maximum continuous current rating of up to 30A, making it suitable for heavy-duty motor applications.
• Wide Voltage Range: Operating within a voltage range of 5.5V to 18V, this driver accommodates a broad spectrum of automotive power systems and ensures compatibility with various motor types.
• Integrated Protections: It comes with a suite of protection features, including over-temperature shutdown, load dump voltage surge protection, and under-voltage shutdown, ensuring the longevity and reliability of both the driver and the motor.
• Diagnostic Capabilities: The VNH5180ATR-E is equipped with diagnostic functionalities that provide feedback on the status of the driver, including open-load detection and thermal shutdown status, allowing for advanced system monitoring and maintenance.

Applications

The versatility of the VNH5180ATR-E makes it an ideal choice for a wide array of automotive applications, such as:

• Power window regulators
• Wiper systems
• Electric power steering
• DC motor control modules

Quality and Reliability

As an automotive-grade product, the VNH5180ATR-E adheres to the strictest quality standards, including the AEC-Q100 qualification. Its robust design ensures consistent performance and resilience in the challenging conditions typical of automotive environments.

Package Information

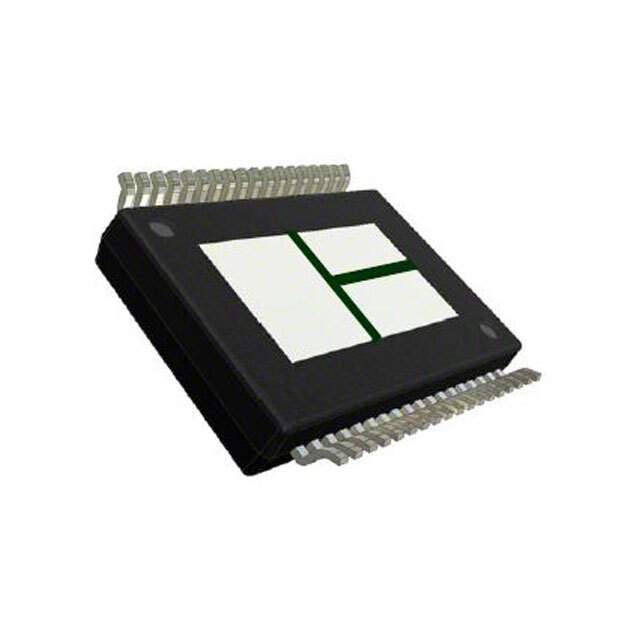

The VNH5180ATR-E is available in a compact MultiPowerSO-30 package, which is designed to optimize the thermal performance and minimize the footprint on the printed circuit board, facilitating a more efficient and space-saving design for modern automotive electronics.
