STMicroelectronics TDA7564B Audio Amplifier

The TDA7564B, manufactured by STMicroelectronics, is a high-end, flexible audio power amplifier that is part of the company's vast portfolio of automotive-grade products. This powerful IC is specifically designed to deliver exceptional sound quality with high power efficiency, making it an ideal choice for advanced car radio systems and other audio applications that require robust performance in a compact footprint.

Key Features

• High Output Power: Capable of delivering up to 4 x 50W of continuous output power, the TDA7564B can drive a wide range of speakers with ease, ensuring loud and clear audio reproduction.

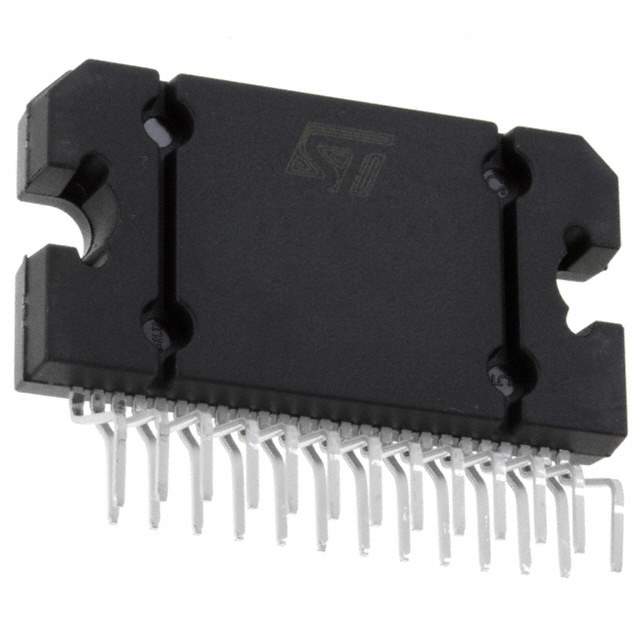

• Flexiwatt27 Package: Encased in a Flexiwatt27 package, the TDA7564B offers a heat-dissipating design that ensures reliable operation even under high power conditions.
• Multiwatt15 and Multiwatt11 Vertical: Also available in Multiwatt15 and Multiwatt11 vertical packages, offering flexibility for various design configurations.
• Low Distortion: The amplifier maintains low levels of Total Harmonic Distortion (THD) across its operating range, resulting in crisp and clear audio output.
• Standby and Mute Functions: Integrated standby and mute functions allow for seamless control over the audio output, reducing power consumption when the amplifier is not in use.
• Protection Systems: It includes a full suite of protection systems, such as short-circuit, thermal overload, and ESD protection, ensuring the longevity and reliability of the device.

Applications

• Car Radio and Multimedia Systems
• High-End Audio/Video Receivers
• Home Theater Systems
• Active Loudspeakers

The TDA7564B stands out for its MOSFET output power stage, which provides high-quality sound with improved efficiency. This feature, along with its advanced diagnostics capabilities, ensures that the TDA7564B is not only a powerful audio solution but also a smart and user-friendly choice for designers looking to incorporate high-fidelity audio into their automotive or consumer electronic products. With the reputation of STMicroelectronics for producing durable and high-performance integrated circuits, the TDA7564B is a reliable and efficient solution for your audio amplification needs.
