STTH1512GY-TR High Efficiency Power Rectifier
The STTH1512GY-TR is a state-of-the-art ultrafast diode manufactured by STMicroelectronics, designed specifically for switching power supplies and other power conversion systems. This product is part of the Turbo 2 ultrafast high voltage series, and it's known for its low forward voltage drop and minimized recovery time, making it highly efficient in applications that require fast switching and low power loss.
Key Features
- High Junction Temperature: Capable of operating at high temperatures, this diode can withstand a maximum junction temperature of 175°C, ensuring reliability and performance under stressful conditions.
- Low Forward Voltage Drop (Vf): With its low forward voltage drop, the STTH1512GY-TR ensures reduced conduction losses, leading to a more efficient power conversion process.
- Ultrafast Switching: The diode's ultrafast recovery time minimizes switching losses and provides improved performance in high-frequency operations.
- Soft Recovery Characteristics: The soft recovery feature of the diode reduces electromagnetic interference (EMI), which is crucial in sensitive electronic applications.
- High Surge Current Capability: Its robust design allows the device to handle high surge currents without failure, providing reliability in applications where surge protection is critical.
Applications
- Switch-mode power supplies (SMPS)
- Free-wheeling diodes in converters and motor control circuits
- Snubber diodes
- Power factor correction (PFC) circuits
- Automotive applications
Product Specifications

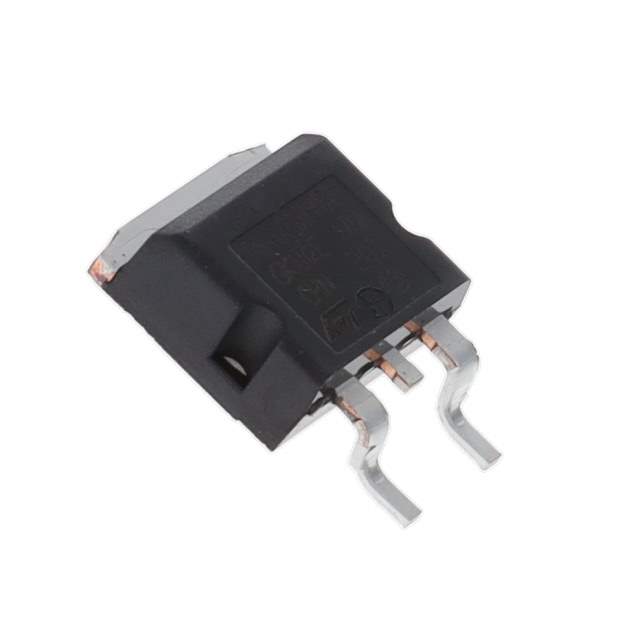

The STTH1512GY-TR comes in a D2PAK (TO-263) surface-mount package, offering a compact footprint for space-constrained applications. It features a repetitive peak reverse voltage (VRRM) of 1200V and an average forward current (IF(AV)) of 15A, making it suitable for high voltage and current operations. The diode's fast recovery time and high switching frequency make it an excellent choice for modern, high-efficiency power supplies.
Whether you're designing an advanced power supply unit or looking to improve the efficiency of existing power conversion systems, the STTH1512GY-TR from STMicroelectronics provides the performance and reliability needed to meet the demands of high-speed switching applications.
