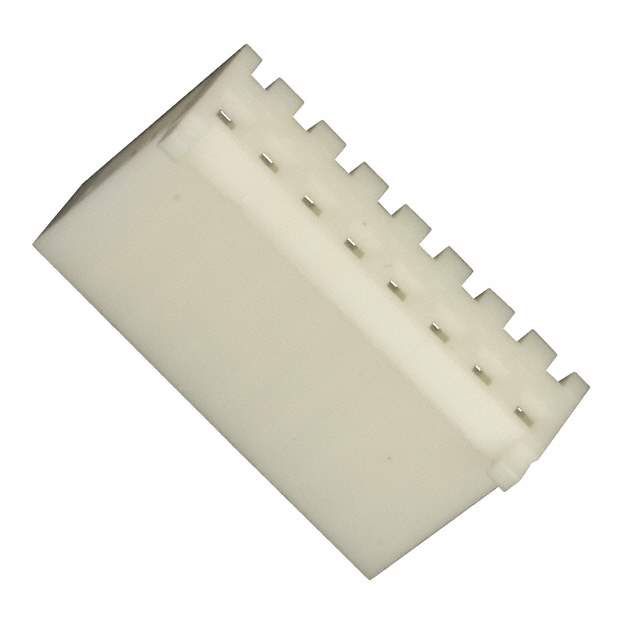

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Housings
Mfr TE Connectivity AMP Connectors
Series CST-100
Package Bulk
Product Status Obsolete
Connector Type Receptacle
Contact Type Female Socket
Number of Positions 8
Pitch 0.100" (2.54mm)
Number of Rows 1
Mounting Type Free Hanging (In-Line)
Contact Termination Crimp
Fastening Type Locking Ramp
Color Natural
Note Contacts Not Included
Base Product Number 770602
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.69.8000
Other Names A19496,-770602-8-SI,2266-770602-8,7706028
Standard Package 500
Win Source Part Number 1132404-770602-8
Ultra Librarian 3D Model Ultra Librarian 770602-8 CAD Model

Description

The TE Connectivity AMP Connectors 1132404-770602-8 is a rectangular connector housing that is designed to provide reliable and efficient connectivity in electronic devices.

  • Connector Type: Receptacle
  • Fastening Type: Locking Ramp
  • Positions: 8
  • Contact Gender: Female Socket
  • Pitch: 0.100" (2.54mm)
  • Operating Temperature Range: -55°C to 105°C
  • Ideal for: Power supplies, audio equipment, and other electronic devices
