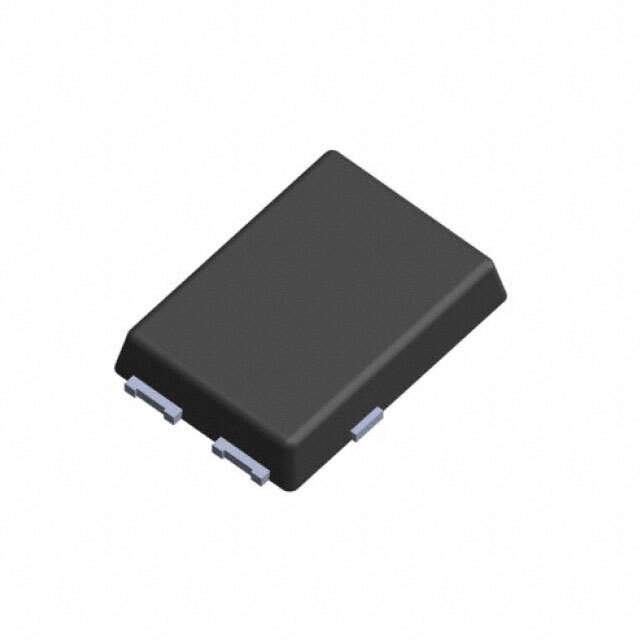

STPS5H100SFY - STMicroelectronics Power Schottky Rectifier

The STPS5H100SFY is a robust and high-performance Schottky rectifier designed by STMicroelectronics, one of the industry leaders in semiconductor solutions. This power Schottky rectifier is particularly suitable for switch-mode power supplies and high-frequency DC to DC converters.

Key Features

• High Junction Temperature Capability: This rectifier can operate at junction temperatures as high as 175°C, making it reliable for applications that experience high thermal conditions.
• Low Forward Voltage Drop: The device ensures a low forward voltage drop (VF) which enhances power efficiency by reducing power loss during operation.
• High Surge Current Capability: Its surge current capabilities make it suitable for applications that experience transient overloads, ensuring reliability and longevity.
• Avalanche Rated: The STPS5H100SFY is designed to handle high energy spikes, making it robust against power surges and voltage transients.

Applications

The versatility of the STPS5H100SFY allows it to be used in a wide array of applications. These include:

• Switch-mode power supplies (SMPS)
• High-frequency DC/DC converters
• Free-wheeling diodes
• Reverse battery protection
• Automotive applications

Product Specifications

The STPS5H100SFY boasts impressive specifications that cater to demanding power management tasks:

• Package: TO-220FP
• Repetitive Peak Reverse Voltage (VRRM): 100V
• Average Forward Current (IF(AV)): 5A
• Forward Voltage (VF) @ IF: 0.85V (typical) at 5A
• Operating Junction Temperature (TJ): -40°C to +175°C

The STPS5H100SFY is a testament to STMicroelectronics' commitment to providing high-quality and durable components for advanced electronic systems. Its performance and reliability make it an excellent choice for engineers and designers looking to optimize their power management solutions.
