The MAX9892ERT from Maxim Integrated is a high-performance, compact audio solution designed for portable applications. This stereo Class D audio amplifier eliminates the need for bulky external filters, enabling designers to create sleek, space-efficient audio systems without compromising on sound quality.

Key Features

• High Efficiency: The MAX9892ERT offers high efficiency, which is essential for battery-powered devices, thereby extending playback time and reducing power consumption.
• Filterless Operation: Its filterless architecture not only reduces the need for external components but also minimizes the overall system cost and simplifies the circuit design.
• Low EMI: Despite being a filterless design, the MAX9892ERT is engineered to produce low electromagnetic interference (EMI), making it suitable for use in close proximity to RF-sensitive circuits.

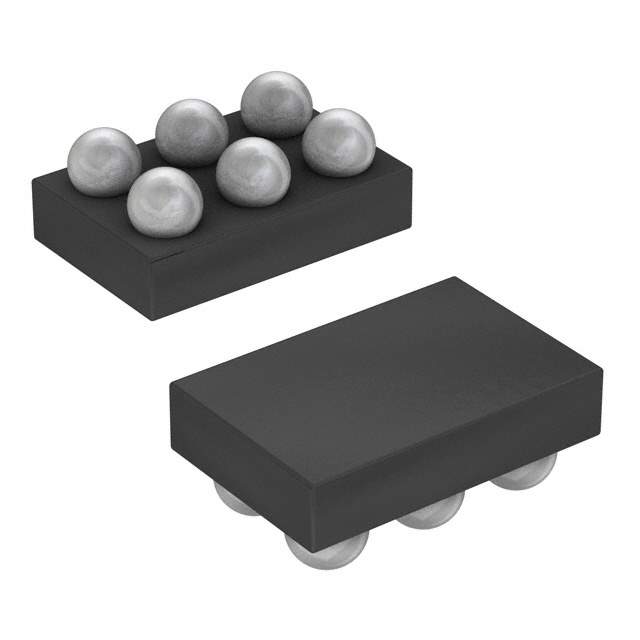

• Compact Size: Available in a tiny package, the MAX9892ERT is perfect for space-constrained applications such as mobile phones, portable media players, and other handheld devices.
• Robust Thermal Performance: The device is designed to operate within a wide temperature range, ensuring reliable performance under varying environmental conditions.

Applications

The MAX9892ERT is ideal for a variety of applications where space and power efficiency are critical. It is commonly used in:

• Mobile Phones
• Portable Media Players
• Handheld Gaming Consoles
• Portable Speaker Systems
• Notebook Computers

Technical Specifications

With a supply voltage range of 2.7V to 5.5V, the MAX9892ERT can deliver up to 1.4W per channel into a 8Ω load. Its low 0.01% THD+N ensures high-fidelity audio reproduction, and the built-in click-and-pop suppression improves the listening experience during power cycling.

Conclusion

The MAX9892ERT from Maxim Integrated is a versatile audio amplifier that offers a blend of high efficiency, filterless design, and low EMI. Its compact form factor and robust performance make it an excellent choice for designers looking to enhance audio quality in portable electronic devices.
