Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer STMicroelectronics
Packaging Tray
Core Processor STM8
Data Bus Width 8-Bit
Speed 24MHz
Connectivity I2C, IrDA, LINbus, SPI, UART/USART
Peripherals Brown-out Detect/Reset, POR, PWM, WDT
The number of I/O 52
Program Memory Size 64KB
Program Memory Type FLASH
EEPROM Size 1.5K x 8
Date RAM Size 6K x 8
Supply Voltage 2.95V ~ 5.5V
Data Converters A/D 16x10b
Temperature Range - Operating -40°C ~ 85°C
Mounting Style SMD
Manufacturer Package 64-LQFP
Family Part Number STM8S207
Manufacturer Pack Quantity 160
MSL Level 3 (168 Hours)
Win Source Part Number 1261572-STM8S207R8T6
Manufacturer Homepage www.st.com
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian STM8S207R8T6 CAD Model

Description

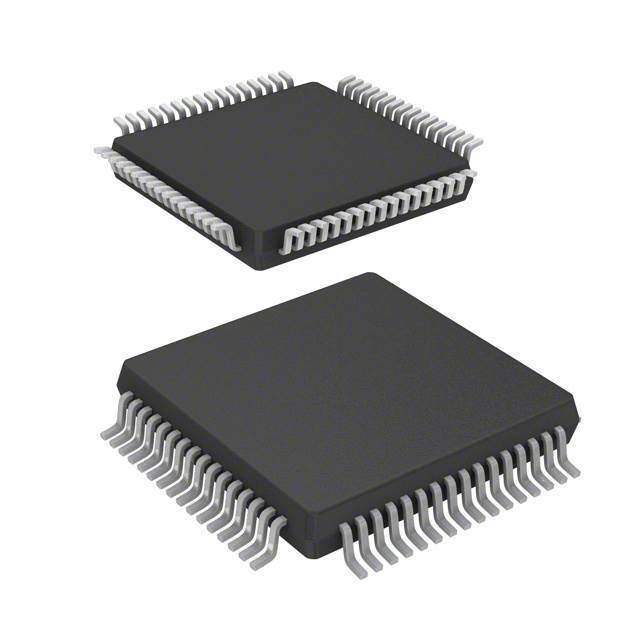

STM8S207R8T6 Microcontroller by STMicroelectronics

The STM8S207R8T6 is a high-performance microcontroller from STMicroelectronics, which is part of the STM8S series known for its robust design and reliable performance. This 8-bit MCU is built around an advanced STM8 core operating at a frequency of up to 24 MHz and is designed to offer an optimal balance between performance, power consumption, and peripheral set.

Key Features

  • CPU: STM8 core running at up to 24 MHz
  • Memory: 64 Kbytes of Flash program memory with read-while-write (RWW) capability, 2 Kbytes of RAM, and 1 Kbyte of EEPROM
  • Digital Peripherals: Integrated clock control, four timers, and up to 37 GPIOs
  • Analog Peripherals: 10-bit ADC with up to 16 channels, and a true data EEPROM with hardware protection
  • Communication Interfaces: UART, SPI, and I2C interfaces for full-duplex communication with peripheral devices
  • Advanced Control: Advanced control timer for complex waveform generation and timing operations
  • Supply Voltage: 3.0 V to 5.5 V operating range
  • Temperature Range: -40°C to 85°C or 125°C, depending on the application requirements
  • Packages: Available in various packages, including LQFP80 and QFN32

Applications

The STM8S207R8T6 is suitable for a wide range of applications due to its versatile feature set. It is commonly used in:

  • Industrial control systems
  • Automotive applications
  • Consumer electronics
  • Home appliances
  • Complex automation systems

Development Support

STMicroelectronics provides comprehensive development support for the STM8S207R8T6, including software libraries, development tools, and evaluation boards. The STM8S family benefits from the STVD-STM8 development environment with a full range of hardware tools such as the in-circuit debugger/programmer ST-LINK. These resources are designed to minimize development time and cost, while enabling engineers to take full advantage of the features and performance of the STM8S207R8T6.
