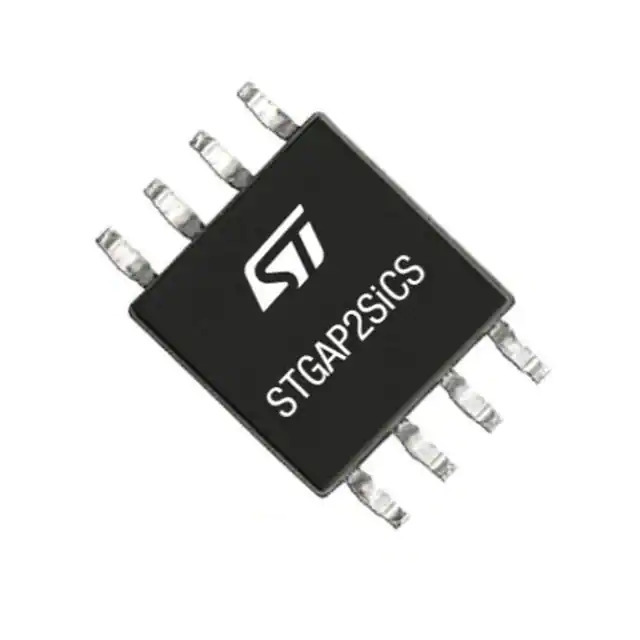

The STGAP2SICS is a state-of-the-art gate driver designed to drive power MOSFETs, IGBTs, and SiC MOSFETs. As a product of STMicroelectronics, a leader in semiconductor solutions, the STGAP2SICS offers a blend of performance, robustness, and ease of use for modern power electronics applications.

Key Features

• Galvanic Isolation: With up to 4 kV of galvanic isolation, the STGAP2SICS ensures that the control part of the circuit is completely isolated from the power stage, enhancing safety and reliability.
• High Voltage Rating: The device is capable of handling voltages up to 1700 V, making it suitable for a variety of high voltage applications.
• Advanced Gate Drive: It provides a gate drive voltage of up to 26 V with an adjustable gate current to cater to different power devices and applications.
• Dedicated dV/dt Filter: A built-in filter helps to prevent spurious gate turn-on, which can be critical in noisy environments.
• Integrated Protection Features: The driver comes with under-voltage lockout, smart shutdown, and over-temperature protection, contributing to the overall system safety and longevity.
• Flexible Inputs: It supports both single and dual input configurations, allowing for greater flexibility in control strategies.

Applications

The STGAP2SICS is ideally suited for a wide range of applications that require efficient and reliable switching. These include:

• Industrial motor drives
• Power converters and inverters
• Power supplies for servers and telecom
• Electric vehicle charging stations
• Renewable energy systems, such as solar inverters and wind turbine converters

Conclusion

With its robust design and comprehensive feature set, the STGAP2SICS from STMicroelectronics represents a versatile and reliable solution for designers looking to optimize their power management systems. Whether for industrial, automotive, or energy-related applications, this gate driver ensures efficient and safe operation of power semiconductors.
