STEVAL-ISA188V1 - An Advanced Power Solution

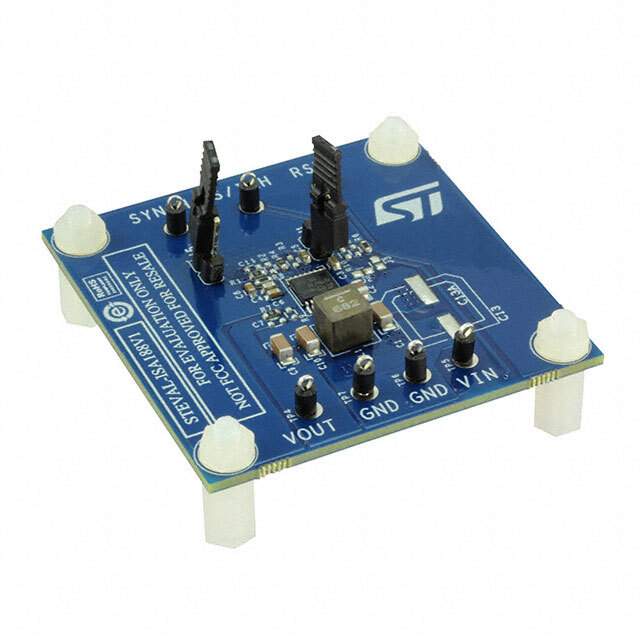

The STEVAL-ISA188V1 is a state-of-the-art product from STMicroelectronics designed to offer an efficient and flexible power solution. This evaluation board is specifically tailored for testing and evaluating the performance of the L7987, a high-efficiency DC-DC converter capable of delivering up to 3 A of current to the load.

The L7987 is a step-down switching regulator with a wide input voltage range from 4.5 V to 61 V, which makes the STEVAL-ISA188V1 an ideal choice for a variety of applications, including industrial, automotive, and consumer electronics where reliability and efficiency are paramount. The output voltage can be adjusted from 0.8 V to VIN, ensuring a high degree of versatility for different design requirements.

The evaluation board comes with a number of features that make it a robust and user-friendly platform for development. It includes an adjustable switching frequency up to 1 MHz, which allows for a compact design with small-sized external components. Moreover, the board is equipped with overcurrent and thermal protection, enhancing its safety and reliability during operation.

The STEVAL-ISA188V1 is not only a powerful tool for engineers but also a convenient one. It offers real-time monitoring of the output voltage, current, and power efficiency via test points and jumper connectors. This facilitates quick and accurate measurements, speeding up the development process and helping engineers to fine-tune their designs.

In summary, the STEVAL-ISA188V1 evaluation board is an excellent representation of STMicroelectronics' commitment to providing innovative power solutions. With its high-performance L7987 regulator, comprehensive protection features, and user-friendly design, this product is a valuable asset for any engineer looking to develop efficient power supply systems.
