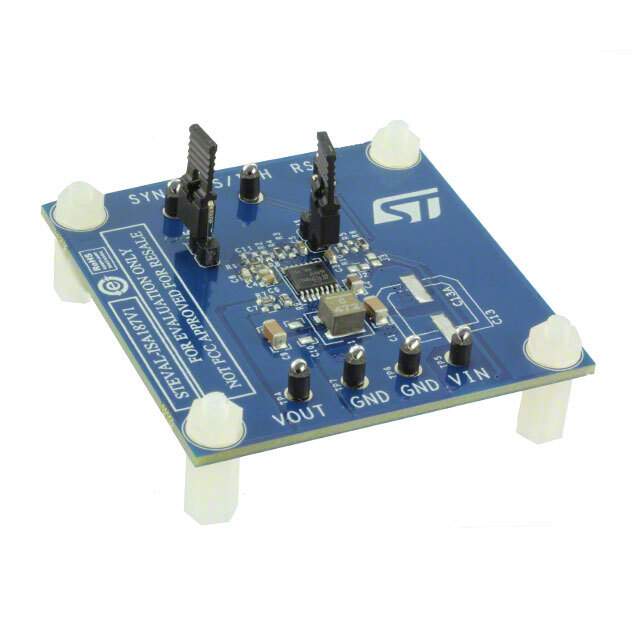

STEVAL-ISA187V1 - STMicroelectronics Evaluation Board

The STEVAL-ISA187V1 from STMicroelectronics is a highly efficient evaluation board designed for power management and conversion applications. This advanced evaluation platform showcases the capabilities of the L7987, a step-down switching regulator with a wide input voltage range and an adjustable output voltage, making it ideal for a diverse array of electronic devices.

Key Features:

• Versatile Input Range: The board operates over a broad input voltage range from 4.5V to 61V, allowing for flexibility in various application scenarios.
• Adjustable Output: Users can set the output voltage from 0.8V to VIN, thanks to the adjustable feedback network, catering to a wide range of power requirements.
• High Efficiency: The L7987 regulator is capable of delivering up to 2A of continuous current with high efficiency, which is crucial for thermal management and energy-saving considerations.
• Thermal Protection: The board includes thermal shutdown and overcurrent protection features, ensuring the safety and longevity of both the board and the end application.
• Minimal External Components: Designed for simplicity, the STEVAL-ISA187V1 requires only a few external components, making it easy to integrate into existing designs.

Applications:

The STEVAL-ISA187V1 is suitable for a wide range of applications, including but not limited to:

• Industrial power supplies
• Consumer electronics
• Telecommunication devices
• Automotive and battery-powered systems

Design and Development Support:

The evaluation board is supported by comprehensive documentation, including schematics, bill of materials, and application notes, which facilitates rapid development and eases integration into final product designs. Additionally, STMicroelectronics provides expert technical support for developers working with the STEVAL-ISA187V1, ensuring a smooth design process from concept to production.
