STEVAL-ISA079V1 - STMicroelectronics Product Overview

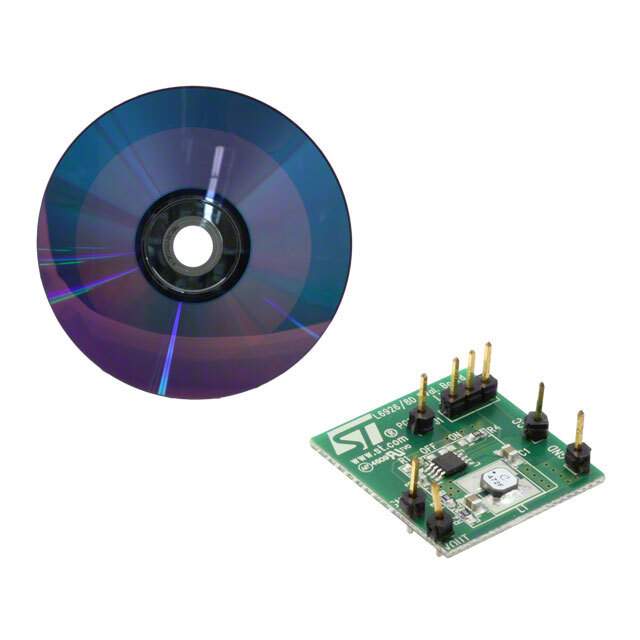

The STEVAL-ISA079V1, crafted by the renowned STMicroelectronics, is a highly efficient, non-isolated, buck-boost DC-DC converter evaluation board. This versatile piece of technology is designed to showcase the performance of the L6920DB, a high-efficiency power converter IC suitable for applications where the input voltage can be either higher or lower than the output voltage.

With its wide input voltage range of 1.8V to 5.5V, the STEVAL-ISA079V1 is an ideal solution for battery-powered applications, ensuring consistent power delivery even as the battery voltage fluctuates. The board is capable of providing a stable 3.3V output voltage with an impressive maximum output current of 600mA, making it suitable for powering a variety of low-power devices and systems.

The evaluation board is equipped with several features that enhance its performance and user-friendliness. It includes an enable function that allows the user to turn the power conversion on or off, thus saving power when the load is inactive. Additionally, the L6920DB chip incorporated into the board has an internal synchronous rectifier, which improves efficiency by reducing the voltage drop and power loss typically associated with diode rectifiers.

For those interested in testing and prototyping with the STEVAL-ISA079V1, the board comes with test points that facilitate easy measurement of input and output voltages, as well as the switching frequency. Moreover, the compact size of the evaluation board makes it easy to integrate into existing projects or for use in space-constrained applications.

The STEVAL-ISA079V1 is not only a testament to STMicroelectronics' commitment to high-quality power management solutions but also an invaluable tool for engineers and designers looking to evaluate the L6920DB buck-boost converter. Whether it's for portable devices, IoT applications, or any other low power systems, this evaluation board is an excellent starting point for development and testing.
