TPS54314EVM Evaluation Module from Texas Instruments

The TPS54314EVM is a fully integrated and robust evaluation module presented by Texas Instruments, designed to help both novice and experienced engineers to assess the performance of the TPS54314, a high-performance, adaptive-on-time D-CAP™ mode synchronous buck converter integrated circuit. This evaluation module is an excellent starting point for those looking to incorporate the TPS54314 into their power management solutions.

The TPS54314EVM showcases the capabilities of the TPS54314 IC, which can provide up to 3A of continuous output current at output voltages as low as 0.891V and as high as 3.3V from a 4.5V to 18V input supply. The converter features a wide range of applications due to its impressive efficiency, fast transient response, and high accuracy. This makes it an ideal choice for powering performance-sensitive components such as DSPs, FPGAs, and microprocessors in a variety of systems.

Key features of the TPS54314EVM include:

• High efficiency at 3A of load current, reducing the need for heat sinks and complex thermal management.
• Adjustable switching frequency from 280 kHz to 700 kHz, allowing designers to optimize the performance for their specific application.
• Integrated low RDS(on) MOSFETs, which contribute to the high efficiency and compact design.
• External synchronization capability, providing flexibility in multi-rail power systems.
• Power Good (PG) output, enabling power sequencing and fault detection.
• Thermal shutdown and overcurrent protection, enhancing the reliability and longevity of the module.

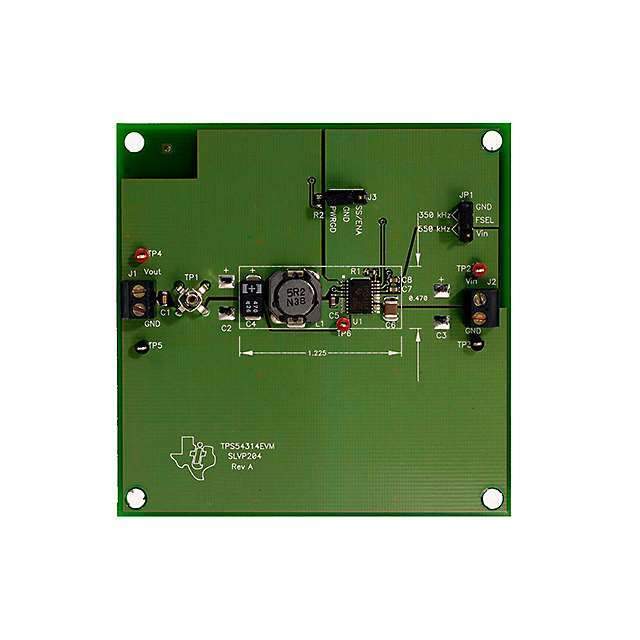

The TPS54314EVM comes with all necessary components pre-soldered onto the PCB, including the TPS54314 IC, MOSFETs, inductor, and passive components. It also features test points for easy measurement of the converter's performance parameters and jumpers for enabling, soft-start, and other adjustable functions. The module's user-friendly design ensures that engineers can quickly set up the evaluation platform and begin testing with minimal setup time.

Whether for testing, prototyping, or learning purposes, the TPS54314EVM from Texas Instruments provides a comprehensive and convenient solution for exploring the capabilities of the TPS54314 buck converter in a real-world application scenario.
