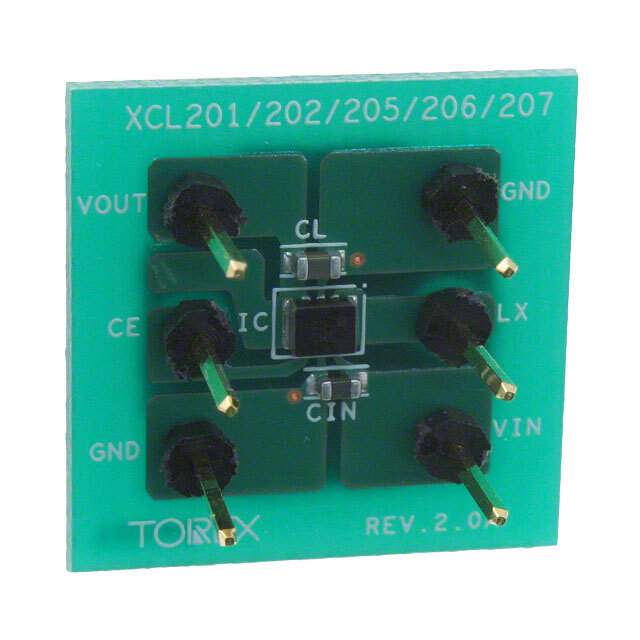

XCL206B123-EVB Real Image
Same model may have multiple batches, images only for reference.

XCL206B123-EVB

Part No XCL206B123-EVB
Manufacturer Torex Semiconductor Ltd
Catalog Evaluation Boards - DC/DC & AC/DC (Off - Line)SMPS
Description BOARD EVAL XCL206B123AR-G 1.2V / XCL206B123 DC to DC Converter and Switching Regulator Chip 1.2VDC Output Evaluation Board
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Development Boards, Kits, Programmers
Manufacturer Torex Semiconductor Ltd
Series XCL206
Main Purpose DC/DC, Step Down
Outputs and Type 1, Non-Isolated
Voltage - Output 1.2V
Output Current 600mA
Voltage - Input 2 V ~ 6 V
Regulator Topology Buck
Board Type Fully Populated
Supplied Contents Board(s)
Utilized IC / Part XCL206B123AR-G
Win Source Part Number 799994-XCL206B123-EVB
Popularity Medium
Supply and Demand Status Balance
Family Name XCL206B123
Introduction Date January 24, 2011
ECCN EAR99
Country of Origin Japan
Estimated EOL Date Not Applicable
Ultra Librarian 3D Model Ultra Librarian XCL206B123-EVB CAD Model

Description

The Torex Semiconductor Ltd 799994-XCL206B123-EVB is a fully populated development board for the XCL206 series regulator.

  • Voltage Output: 1.2V
  • Voltage Input: 2 V ~ 6 V
  • Applications: DC/DC, step down
  • Output Current: 600mA
  • Popularity: Medium
  • Supply and Demand Status: Balance
  • Manufacturer Package: XCL206B123
  • Introduction Date: January 24, 2011
