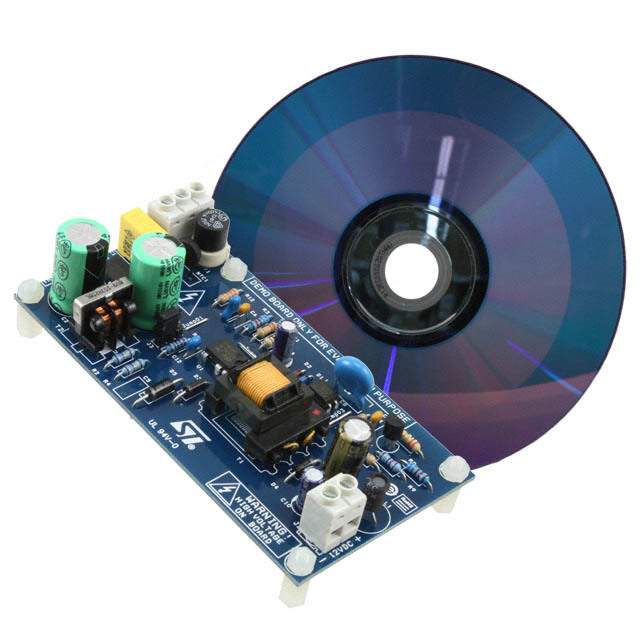

STEVAL-ISA060V1 - STMicroelectronics Demonstration Board

The STEVAL-ISA060V1 from STMicroelectronics is a highly efficient, fully integrated, industrial-grade demonstration board designed for power supply solutions. This product is part of the VIPerPlus series, which includes high-voltage converters with integrated power MOSFETs. The board is specifically tailored for switch mode power supplies (SMPS) applications, showcasing the performance of the VIPerPlus family in a flyback converter topology.

The STEVAL-ISA060V1 is capable of delivering up to 12 W of output power with an input voltage range from 90 to 264 VAC, making it suitable for a wide range of AC-DC applications. The board operates at a fixed 60 kHz switching frequency and includes a brown-out protection feature for enhanced reliability under abnormal input voltage conditions.

With an emphasis on energy savings, the board demonstrates excellent efficiency and meets energy efficiency regulations such as the European CoC Version 5 Tier 2 and the US Energy Star for external power supply requirements. It also features low standby power consumption, which is critical for energy-saving applications.

The STEVAL-ISA060V1 includes several protections such as overvoltage, overload, short-circuit, and thermal shutdown to ensure the safety and longevity of the power supply and the end application. These features make the board an excellent choice for designers looking for a robust and reliable power supply solution for their industrial and consumer electronics products.

The compact design and comprehensive set of features provided by the STEVAL-ISA060V1 make it an ideal platform for quick prototyping and testing, significantly reducing time-to-market for new products. The demonstration board comes with complete documentation, including schematics, BOM, and application notes, to facilitate development and integration into final applications.

For more information or to purchase the STEVAL-ISA060V1, visit the STMicroelectronics website.
