Products specifications Report Issue?

Category Integrated Circuits (ICs)>Embedded - Microcontrollers
Mfr STMicroelectronics
Series Automotive, AEC-Q100, SPC56xL
Core Processor e200z4d
Core Size 32-Bit Dual-Core
Speed 120MHz
Connectivity CANbus, LINbus, SCI, SPI, UART/USART
Peripherals DMA, LVD, POR, PWM, WDT
Number of I/O 96
Program Memory Size 2MB (2M x 8)
Program Memory Type FLASH
RAM Size 192K x 8
Supply Voltage - Operating 3V ~ 3.63V
Data Converters A/D 32x12b
Oscillator Type Internal
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting SMD (SMT)

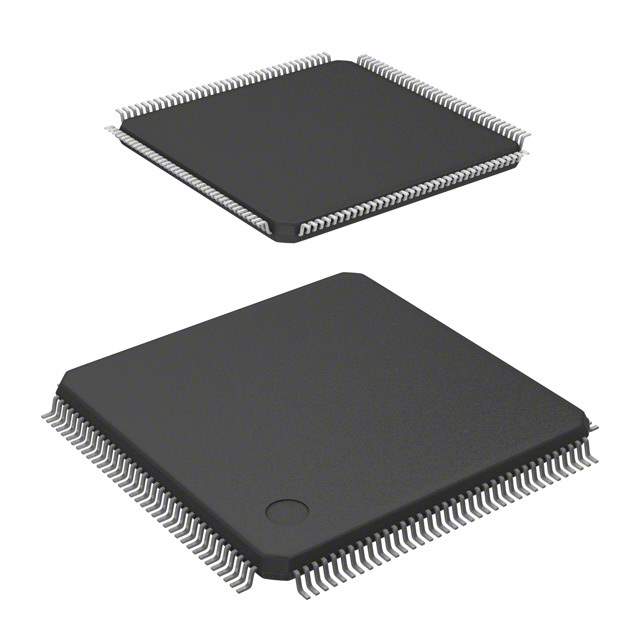

Package / Case 144-LQFP
Supplier Device Package 144-LQFP (20x20)
Base Product Number SPC56
Standard Package 60
MSL Level 3 (168 Hours)
ECCN 3A991A2
HTSUS 8542.31.0001
Win Source Part Number 1263471-SPC56EL70L5CBOSY
Ultra Librarian 3D Model Ultra Librarian SPC56EL70L5CBOSY CAD Model

Description

The SPC56EL70L5CBOSY is a high-performance automotive microcontroller designed by STMicroelectronics, tailored for advanced applications in modern vehicle electronics. This microcontroller is part of the SPC56EL series, which is renowned for its robust processing capabilities and integration features that cater to the demanding requirements of automotive control units.

Key Features

  • Core: The SPC56EL70L5CBOSY is built around a 32-bit Power Architecture® e200z4d dual-core processor, with one of the cores locked in checkstop state for enhanced reliability. The cores are capable of operating at up to 180 MHz, providing the computational power needed for complex automotive applications.
  • Memory: It comes equipped with 1.5MB of flash memory and 128KB of RAM, offering ample storage for application code and efficient runtime data handling.
  • Advanced Timer: The microcontroller features a Modular Timer System (MTS) that includes a rich set of timers, offering flexibility for a wide range of timing and control tasks.
  • Communication Interfaces: A variety of communication interfaces are available, including multiple CAN (Controller Area Network) interfaces, LIN (Local Interconnect Network), and FlexRay, supporting the integration of the microcontroller into a vehicle's communication bus system.
  • Analog-to-Digital Converters (ADCs): Multiple 12-bit ADCs provide accurate conversion of analog signals to digital, crucial for sensor data processing.
  • Enhanced Safety Features: Safety features include a Memory Protection Unit (MPU), Error Correction Code (ECC) on both flash and RAM, and a built-in self-test (BIST) functionality for critical safety applications.
  • Temperature Range: The device operates over a wide temperature range from -40°C to +125°C, suitable for harsh automotive environments.
  • Package: The microcontroller is offered in a LQFP176 package, providing a compact footprint for space-constrained applications.

Applications

The SPC56EL70L5CBOSY is ideal for a variety of automotive applications such as engine management, transmission control, chassis control, electric power steering, and advanced driver-assistance systems (ADAS). Its robust design and rich feature set make it a preferred choice for manufacturers seeking a reliable and powerful microcontroller solution.
