Introducing the LSM303CTR from STMicroelectronics

The LSM303CTR is a state-of-the-art, high-performance system-in-package featuring a 3D digital linear acceleration sensor and a 3D digital magnetic sensor. This compact module is designed by STMicroelectronics, a global semiconductor leader known for its cutting-edge technology and innovative solutions in the electronics space.

Advanced Sensor Capabilities

At the heart of the LSM303CTR lies its advanced sensor technology. The accelerometer component of the device can measure acceleration in the X, Y, and Z axes, with selectable full scales of ±2g/±4g/±8g/±16g. This allows for precise motion detection and analysis, making it suitable for a variety of applications ranging from gaming and virtual reality to industrial systems and vehicle navigation.

The magnetometer component provides accurate detection of magnetic fields, also in three dimensions. With a full-scale magnetic field detection range of ±50 gauss, the LSM303CTR is capable of providing compass and positioning functions, enhancing its utility in applications such as robotics, drones, and personal navigation devices.

Technical Features and Integration

The device is not only versatile but also designed for easy integration into various systems. It communicates via an I2C serial interface, which is widely used in microcontroller-based projects and ensures compatibility with a broad range of development boards and microcontrollers.

Moreover, the LSM303CTR is designed with an eco-conscious approach. It operates within a supply voltage range of 1.9V to 3.6V, which enables energy-efficient operation in battery-powered devices. Its low-power consumption modes and power-down capability further extend battery life in portable applications.

Compact and Robust Design

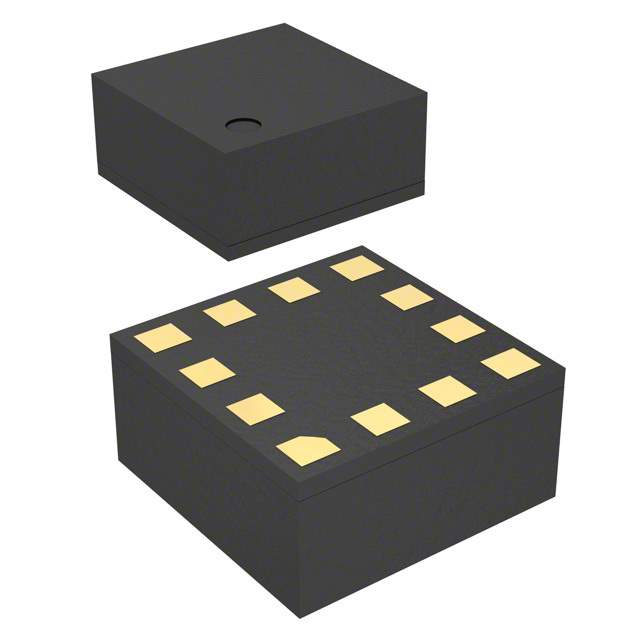

The LSM303CTR comes in a compact LGA package that measures just 2.0 x 2.0 x 1.0 mm, making it an ideal choice for space-constrained applications. Despite its small size, the module is robust and can operate within a temperature range of -40°C to +85°C, ensuring reliable performance across various environments.

With its combination of high precision, versatility, and ease of integration, the LSM303CTR from STMicroelectronics represents an excellent choice for designers and engineers looking to incorporate advanced sensing capabilities into their next project.
