STMicroelectronics LSM330DTR Product Overview

The LSM330DTR is a system-in-package featuring a 3D digital accelerometer and a 3D digital gyroscope tailored for advanced motion-sensing applications. Manufactured by STMicroelectronics, a leader in the semiconductor industry, this compact and high-performance module is an ideal choice for a wide range of applications, including gaming and virtual reality devices, sports equipment, robotics, and drone stabilization systems.

Key Features

• 3D Accelerometer: Measures linear acceleration along three perpendicular axes with selectable full scales of ±2g/±4g/±6g/±8g/±16g.
• 3D Gyroscope: Detects angular rate changes along three orthogonal axes with a selectable full scale of ±250/±500/±2000 degrees per second.
• High Resolution: Offers high-resolution measurement with 16-bit data output, ensuring precise tracking of motion.
• Embedded Intelligence: Features embedded FIFO and programmable interrupt generators that enhance system efficiency by reducing the host processor's computational load.
• Power Efficiency: Operates in normal, low-power, or power-down modes, allowing for optimized power consumption based on the application's requirements.
• Multi-Interface Capability: Supports I²C and SPI serial interfaces, providing flexibility in system design and ease of integration into various microcontroller architectures.

Applications

• Virtual Reality (VR) and Augmented Reality (AR) devices
• Gaming consoles and controllers
• Sports and fitness devices
• Industrial and robotics applications
• Drone and other aerial vehicle stabilization systems

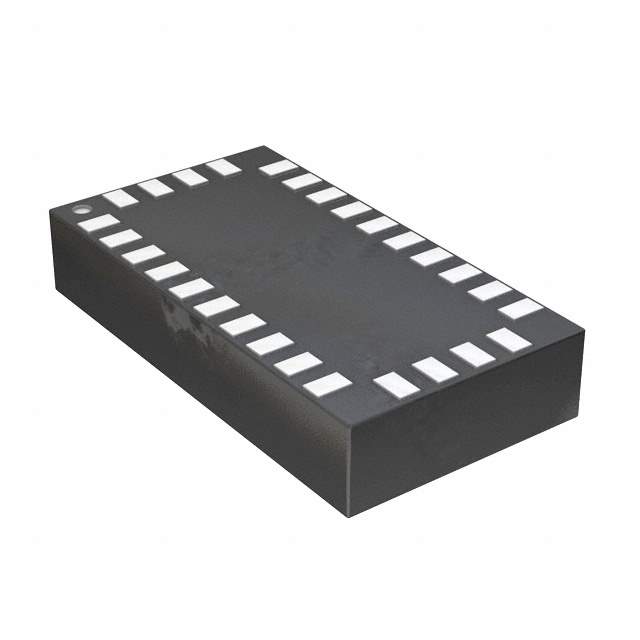

With its robust design and advanced features, the LSM330DTR from STMicroelectronics is engineered to provide precise and reliable motion detection. Its small footprint, measuring just 4x5x1 mm in a land grid array (LGA) package, makes it suitable for space-constrained applications while still delivering the performance needed for sophisticated motion analysis.
