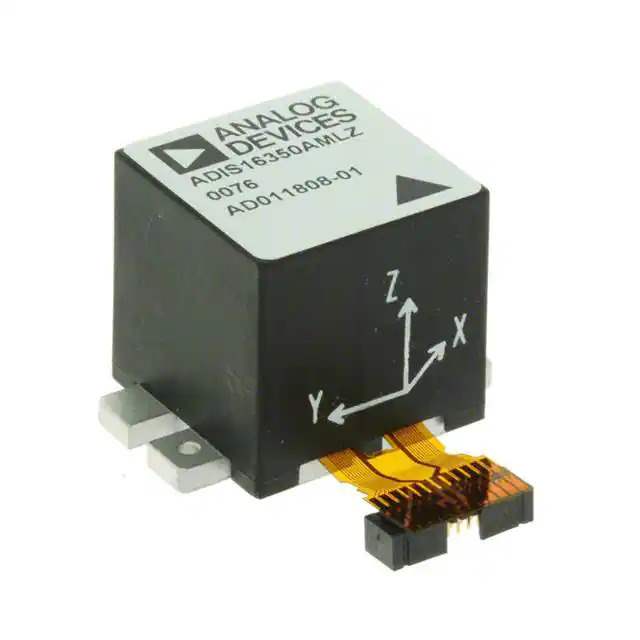

ADIS16350AMLZ

Part No ADIS16350AMLZ
Manufacturer Analog Devices Inc.
Catalog Motion Sensors - IMU (Inertial Measurement Units)
Description MOD TRI-AXIS GYRO/ACCEL 24-LEAD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Motion Sensors - IMUs (Inertial Measurement Units)
Mfr Analog Devices Inc.
Series iMEMS®, iSensor™
Package Box
Product Status Obsolete
Sensor Type Accelerometer, Gyroscope, 6 Axis
Output Type SPI
Package / Case Module
Supplier Device Package Module
Mounting Type Chassis Mount
Standard Package 1 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN 7A994
HTSUS 8542.39.0001
Win Source Part Number 557823-ADIS16350AMLZ
Ultra Librarian 3D Model Ultra Librarian ADIS16350AMLZ CAD Model

Description

ADIS16350AMLZ - High Precision Tri-Axis Inertial Sensor

The ADIS16350AMLZ is a high-performance inertial sensor module from Analog Devices Inc., designed to offer precise tri-axis angular rate and linear acceleration sensing in a compact, ruggedized LGA package. This sensor is part of the iSensor® product family, which integrates multi-axis sensors with signal processing, calibration, data buffering, and a host of other features to provide a complete system solution.

Featuring a gyro range of ±300°/sec and an accelerometer range of ±5g, the ADIS16350AMLZ is capable of capturing high dynamic movements, making it an ideal choice for a variety of industrial and military applications. These include platform stabilization, navigation, robotics, and vehicle dynamics.

The module's precision is enhanced by factory calibration for sensitivity, bias, alignment, and temperature, ensuring reliable and consistent performance across different environmental conditions. The calibration data is stored in the onboard non-volatile memory, enabling the sensor to maintain its accuracy without the need for continuous recalibration.

The ADIS16350AMLZ offers a user-friendly SPI-compatible serial interface, allowing for easy integration into existing systems. Additionally, the sensor's digital outputs eliminate the need for analog-to-digital conversion, reducing system complexity and improving noise performance.

With a wide operating temperature range of -40°C to +85°C, the ADIS16350AMLZ is built to perform in harsh environments. Its robust design includes a hermetic package that protects the sensor from moisture and other environmental contaminants.

The device also features several built-in self-test functions, which can be used to verify sensor integrity and assist with system troubleshooting. The programmable operation and control, including configurable filters and sample rates, make the ADIS16350AMLZ a versatile solution tailored to meet the specific needs of various applications.

Overall, the ADIS16350AMLZ from Analog Devices Inc. represents a blend of high precision, durability, and ease of use, making it a top-tier choice for system designers seeking a reliable tri-axis inertial sensor.
