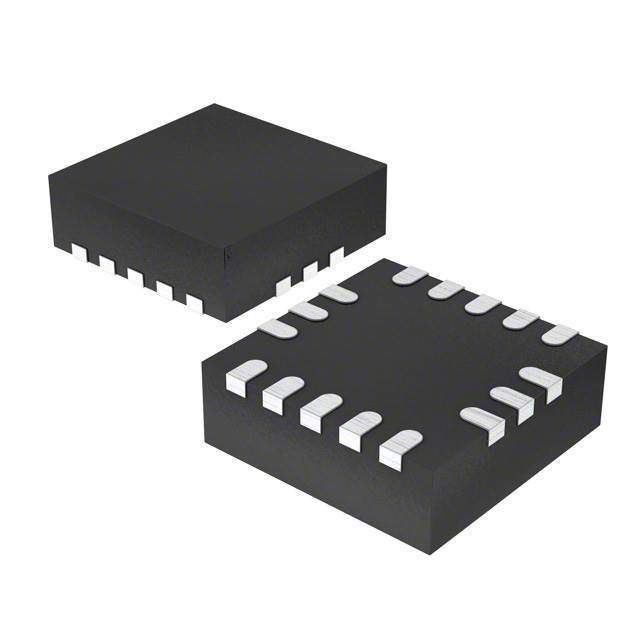

STMicroelectronics LSM303D - Ultra-Compact High-Performance eCompass Module

The LSM303D is a state-of-the-art product by STMicroelectronics, designed to cater to the burgeoning demand for advanced navigational features in portable electronic devices. This ultra-compact, high-performance system-in-package features a 3D digital linear acceleration sensor and a 3D digital magnetic sensor, which together act as a complete eCompass solution.

The LSM303D integrates a variety of features that make it a versatile choice for applications such as mobile phones, tablets, and personal navigation devices. Its low-power consumption and enhanced accuracy are the cornerstones of its design, ensuring optimal performance for end-users. The accelerometer has a full-scale range of ±2g/±4g/±6g/±8g/±16g, which can be selected by the user, while the magnetometer boasts a full-scale range of ±2/±4/±8/±12 gauss, making it suitable for a wide array of applications.

With its high-resolution measurement capabilities, the LSM303D ensures precise heading detection, a critical feature for map rotation and accurate pointing in navigation systems. The device features I2C and SPI interfaces, providing flexibility in connecting with a host controller. The module also includes an embedded temperature sensor and a FIFO (first-in, first-out) buffer that reduces the processing burden on the host processor and saves power.

The LSM303D's compact footprint and the capability to operate over a temperature range of -40°C to +85°C make it a robust choice for outdoor and harsh-environment applications. Additionally, it supports various operating modes that enable designers to balance power consumption and performance according to the specific needs of their application.

In summary, the LSM303D from STMicroelectronics is an excellent choice for developers looking to integrate reliable and high-precision eCompass functionality into their designs. Its combination of performance, power efficiency, and compact size makes it a leading solution in the market for 3D magnetometer and accelerometer applications.
