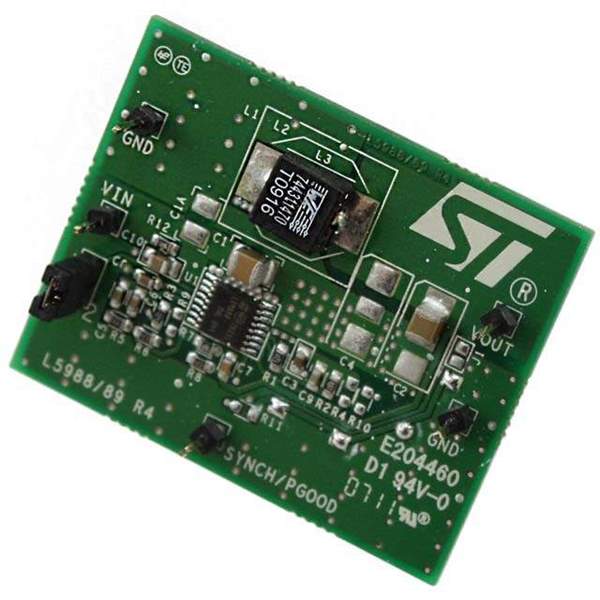

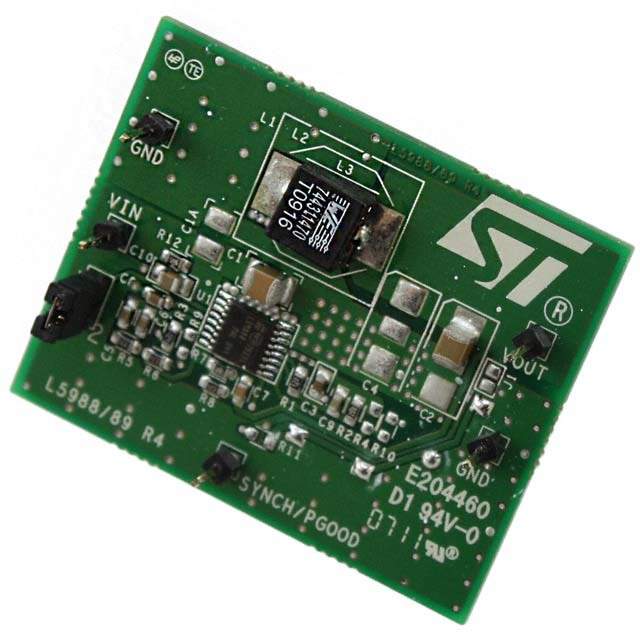

The EVAL5988D from STMicroelectronics is a state-of-the-art evaluation board designed for the precise analysis and performance assessment of the L5988D, a high-efficiency step-down switching regulator. This advanced product is specifically engineered to cater to the needs of engineers and developers who require a reliable and flexible platform to test the L5988D regulator in various application scenarios.

Key Features

• High Efficiency: The L5988D regulator, which the EVAL5988D is built around, boasts high efficiency, making it suitable for applications where power conservation is critical.
• Adjustable Output Voltage: Users can tweak the output voltage as per their requirements, ensuring versatility across different uses.
• Thermal Protection: The board includes thermal shutdown protection to prevent damage from overheating, ensuring the longevity and reliability of the evaluation system.
• Under-Voltage Lockout (UVLO): The UVLO feature safeguards the device against operation at inadequate input voltages, which can lead to suboptimal performance or damage.
• Compact Design: The EVAL5988D is designed to be compact, making it easy to integrate into various setups without taking up excessive space.

Applications

The EVAL5988D is ideal for a wide range of applications, including but not limited to:

• Telecommunication devices
• Consumer electronics
• Industrial control systems
• Automotive applications
• Portable devices and battery-powered equipment

Technical Specifications

The evaluation board comes with robust technical specifications that include:

• Input voltage range: 4.5V to 38V
• Switching frequency: up to 1MHz
• Output current: up to 3A
• RoHS compliant

Overall, the EVAL5988D is a powerful tool for professionals looking to thoroughly evaluate the L5988D step-down switching regulator. Its comprehensive feature set and flexible design make it an essential asset for developing efficient power supply solutions in a multitude of electronic applications.
