Product Overview: CSD86350Q5DEVM-604 Evaluation Module

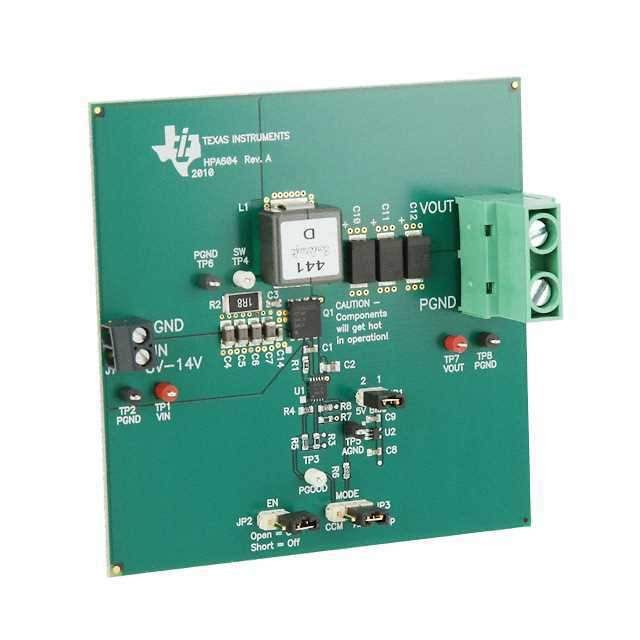

The CSD86350Q5DEVM-604 from Texas Instruments is an evaluation module designed to demonstrate the capabilities of the CSD86350Q5D NexFET™ power block. This compact and efficient device is engineered to simplify the evaluation process for designers and engineers, providing a straightforward platform to test the performance of the CSD86350Q5D in a variety of circuit configurations.

Key Features

• Optimized Design: The CSD86350Q5DEVM-604 is meticulously crafted to showcase the CSD86350Q5D power block's high efficiency and optimal thermal performance, making it an ideal solution for power supply applications.
• Double Cooling: This evaluation module is equipped with an advanced double-sided cooling system, which significantly enhances thermal management and allows for better performance under high-power conditions.
• User-Friendly Interface: With its easy-to-use connectors and test points, the CSD86350Q5DEVM-604 ensures a user-friendly experience for both novice and experienced users, facilitating quick and efficient testing.

Applications

The versatility of the CSD86350Q5DEVM-604 makes it suitable for a wide range of applications, including:

• DC/DC power supplies
• Motor control circuits
• Point-of-load converters
• High-density power solutions

Technical Specifications

The CSD86350Q5DEVM-604 is built around the CSD86350Q5D power block, which boasts impressive technical specifications:

• SON 5mm x 6mm plastic package
• Low R<sub>DS(on) for improved efficiency
• High continuous current capability
• Optimized gate drive
• RoHS compliant

Support and Resources

For those requiring additional support, Texas Instruments provides extensive resources including detailed datasheets, application notes, and design guides. The CSD86350Q5DEVM-604 also comes with access to TI's expert support community and technical documentation, ensuring that users can maximize the module's potential and integrate it seamlessly into their projects.
