The ESDA7P60-1U1M from STMicroelectronics is a state-of-the-art ESD protection device designed to safeguard high-speed interfaces from electrostatic discharge damages. This robust component is an essential addition to any sensitive electronic circuit, particularly those found in modern consumer electronics, telecommunications, and industrial applications.
The ESDA7P60-1U1M is a bidirectional single-line TVS (Transient Voltage Suppressor) diode that features a low line capacitance of 0.7 pF, making it particularly suitable for protecting high-frequency lines without compromising signal integrity. It is capable of withstanding ESD strikes up to the IEC 61000-4-2 level 4 standard, absorbing up to ±15 kV (air discharge) and ±8 kV (contact discharge), thus providing a high level of protection for sensitive components.

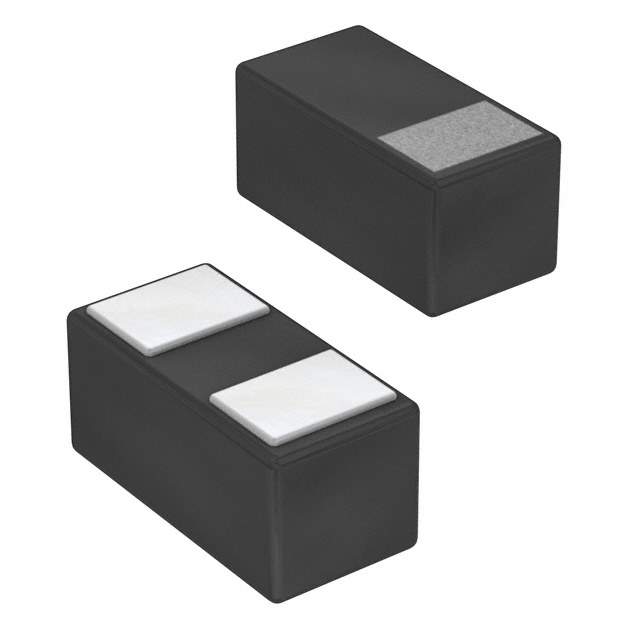

The device is housed in a small SOD-882 package, also known as the μQFN-2L, which not only saves valuable PCB space but also ensures minimal parasitic inductance due to its compact footprint. The low package height of the ESDA7P60-1U1M is an added advantage for applications with space constraints.
With an extremely low leakage current of less than 0.1 µA, the ESDA7P60-1U1M is designed for power-sensitive applications. Its fast response time ensures quick activation upon detecting an ESD event, thereby providing immediate protection to the downstream electronics.
The ESDA7P60-1U1M is RoHS compliant and is characterized by its high reliability and robustness over a wide temperature range of -40°C to +125°C. This makes it an ideal choice for a broad spectrum of applications, including USB 2.0, HDMI, Ethernet, and other high-speed data lines where ESD protection is critical.
In summary, the ESDA7P60-1U1M from STMicroelectronics is a high-performance, space-saving solution for protecting sensitive circuits against the potentially destructive effects of electrostatic discharge. Its low capacitance, fast response time, and high ESD withstand capability make it a go-to choice for designers looking to enhance the durability and reliability of their electronic products.
