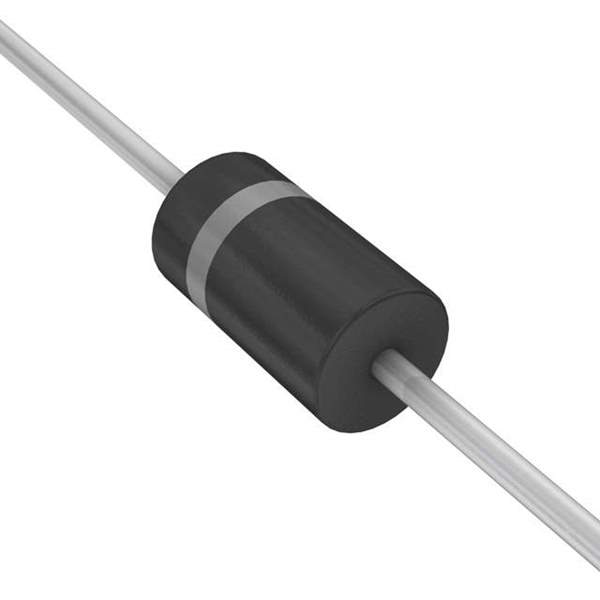

1N6267A

Part No 1N6267A
Manufacturer ON Semiconductor
Catalog TVS - Diodes
Description GLASS PASSIVATED JUNCTION TRANSIENT VOLTAGE SUPPRESSOR | TVS DIODE 5.8V 10.5V AXIAL
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer ON Semiconductor
Packaging Bulk
Status Obsolete
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff 5.8V
Voltage - Breakdown (Minimum) 6.45V
Voltage - Clamping (Maximum) at Ipp 10.5V
Power - Peak Pulse 1500W (1.5kW)
Power Line Protection No
Applications General Purpose
Temperature Range - Operating -65°C ~ 175°C
Mounting Style Through Hole
Manufacturer Package DO-201AD, Axial
Supplier Device Package Axial
Family Part Number 1N6267A
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Win Source Part Number 1122106-1N6267A
Manufacturer Homepage www.transyselectronics.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 1N6267A CAD Model

Description

ON Semiconductor 1N6267A TVS Diode

The 1N6267A is a robust Transient Voltage Suppressor (TVS) diode designed and manufactured by ON Semiconductor, a leader in energy-efficient innovations. This TVS diode is engineered to protect sensitive electronic equipment from voltage transients induced by system inductance, lightning, and other transient voltage events. It is a critical component for ensuring the reliability and longevity of a wide range of electronic systems.

Key Features:

  • Peak Pulse Power: The 1N6267A offers excellent clamping capability, with a peak pulse power dissipation of 1500 Watts at 10/1000μs waveform, which helps to safeguard against high energy transients.
  • Breakdown Voltage: It has a stand-off voltage range from 6.8V to 200V, providing flexibility to designers in selecting the appropriate voltage rating for their specific application.
  • Fast Response Time: The device's response time is typically less than 1.0 picosecond from 0V to BV min, ensuring quick protection for sensitive circuits.
  • Low Incremental Surge Resistance: The surge resistance is exceptionally low, which enhances the device's ability to suppress transients.
  • Operating Temperature: It operates within a wide temperature range from -55°C to +175°C, making it suitable for various challenging environments.
  • Package: The 1N6267A comes in an axial lead package, which is designed for through-hole mounting, providing ease of integration into a wide variety of systems.

Applications:

The ON Semiconductor 1N6267A is ideal for protecting voltage sensitive components in a variety of applications, including:

  • Industrial systems
  • Consumer electronics
  • Automotive systems
  • Telecommunication devices
  • Power supply circuits

With its robust construction and reliable performance, the 1N6267A from ON Semiconductor is an excellent choice for designers looking to enhance the durability and resilience of their electronic products against transient voltages.
