The ECMF02-4CMX8 is a state-of-the-art ESD protection device manufactured by STMicroelectronics, a global semiconductor leader known for its innovative and reliable components. This particular product is designed to safeguard high-speed interfaces against electrostatic discharge (ESD) which can be detrimental to the delicate circuitry in modern electronic devices.

Key Features

• High ESD protection: The ECMF02-4CMX8 can withstand ESD strikes as per the IEC 61000-4-2 standard, ensuring robust protection for sensitive components.
• High integration: This device integrates four low-capacitance steering diodes and a Zener diode to provide protection for up to two differential lines.
• Low capacitance: With a capacitance of only 0.6 pF per differential line, it is ideal for high-speed data lines such as USB 2.0, HDMI, and Thunderbolt, without compromising signal integrity.
• Low leakage current: Ensures minimal power consumption when the device is in a standby state, making it suitable for power-sensitive applications.

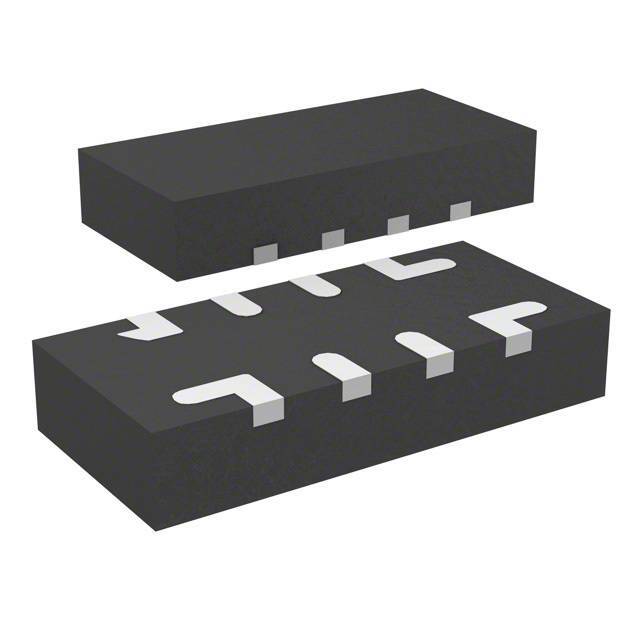

• Thin package: The ECMF02-4CMX8 comes in a micro QFN-8 package, which is not only space-saving but also enhances the thermal performance of the device.

Applications

This versatile ESD protection device is suitable for a wide range of applications, including:

• Smartphones and other portable electronics
• High-speed data lines in consumer electronics
• USB 2.0 and HDMI interfaces
• Thunderbolt ports for high-speed data transfer

Why Choose the ECMF02-4CMX8?

Choosing the ECMF02-4CMX8 for your high-speed interface protection needs means opting for a product that offers a perfect blend of performance, reliability, and space efficiency. STMicroelectronics' commitment to quality ensures that each ECMF02-4CMX8 device meets the highest standards, providing your applications with the best possible defense against the common threat of ESD without compromising on functionality or design.
