Same model may have multiple batches, images only for reference.

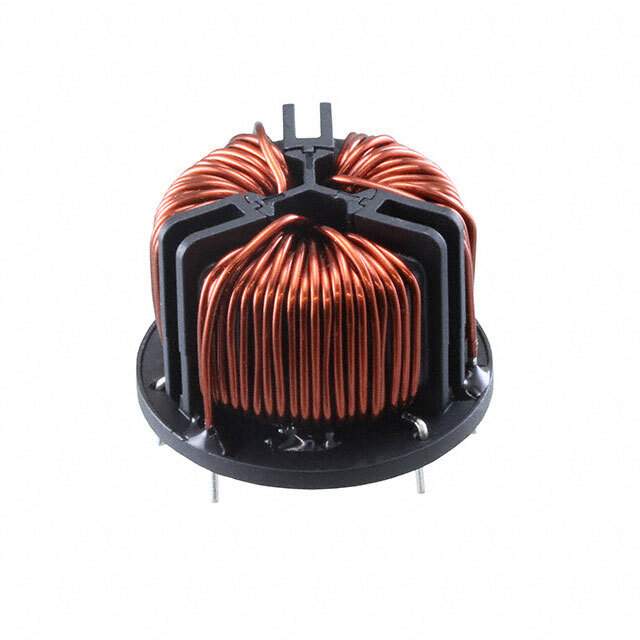

RT8132-10-4M0 Real Image
Same model may have multiple batches, images only for reference.

RT8132-10-4M0

Part No RT8132-10-4M0
Manufacturer Schaffner EMC Inc.
Catalog Common Mode Chokes
Description CMC 4MH 10A 3LN TH / 4 mH @ 100 kHz 3 Line Common Mode Choke Through Hole 10A DCR 15mOhm (Typ)
Datasheet
RT8132-10-4M0 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Common Mode Chokes
Mfr Schaffner EMC Inc.
Series RT
Package Tray
Filter Type Power Line
Number of Lines 3
Inductance @ Frequency 4 mH @ 100 kHz
Current Rating (Max) 10A
DC Resistance (DCR) (Max) 15mOhm (Typ)
Voltage Rating - AC 600V
Temperature Range - Operating -40°C ~ 100°C
Mounting Type Through Hole
Size / Dimension 2.008" Dia (51.00mm)
Height (Max) 1.299" (33.00mm)
Package / Case Horizontal, 6 PC Pin
Base Product Number RT8132
Standard Package 60
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
California Prop 65 Warning Information
Win Source Part Number 1352251-RT8132-10-4M0
Ultra Librarian 3D Model Ultra Librarian RT8132-10-4M0 CAD Model

Description

The RT8132-10-4M0 is a common mode choke filter manufactured by Schaffner EMC Inc.

  • Series: RT
  • Package: Tray
  • Mounting Type: Through Hole
  • Package/Case: Horizontal, 6 PC Pin
  • Voltage Rating: 600V AC
  • Maximum Current Rating: 10A
  • Inductance @ Frequency: 4 mH @ 100 kHz
  • Height: 1.299 inches
  • Diameter: 2.008 inches
