Same model may have multiple batches, images only for reference.

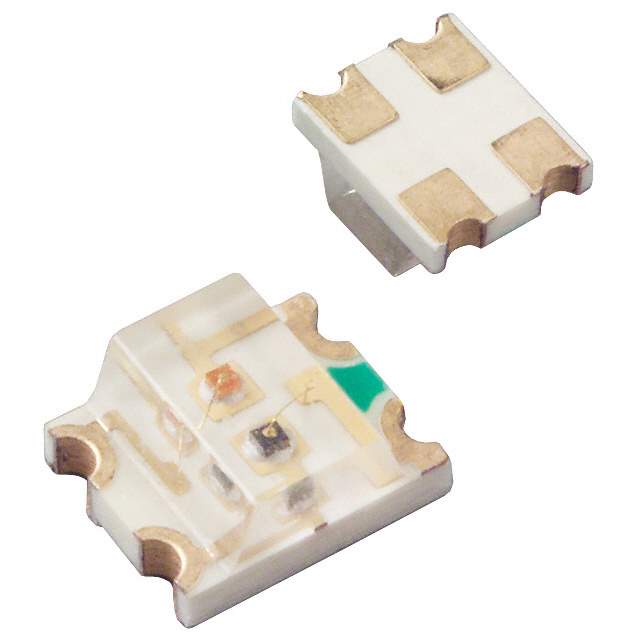

BRPG1201W-TR Real Image
Same model may have multiple batches, images only for reference.

BRPG1201W-TR

Part No BRPG1201W-TR
Manufacturer Stanley Electric Co
Catalog LED Indication - Discrete
Description LED GREEN/RED CLEAR 1208 SMD
Datasheet
BRPG1201W-TR Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Stanley Electric Co
Packaging Reel - TR
Status Active
Color Green, Red
Configuration Independent
Lens Color Colorless
Lens Transparency Clear
Millicandela Rating 4.8mcd Green, 12.8mcd Red
Lens Style/Size Rectangle with Flat Top, 1.50mm x 2.50mm
Forward Voltage 2.1V Green, 1.7V Red
Current - Test 20mA Green, 20mA Red
Viewing Angle 156°, 149° Green, 160°, 150° Red
Mounting SMD (SMT)
Wavelength - Dominant 567nm Green, 647nm Red
Wavelength - Peak 560nm Green, 660nm Red
Case / Package SMD
Height (Max) 1.90mm
Win Source Part Number 1024295-BRPG1201W-TR
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian BRPG1201W-TR CAD Model

Description

The Stanley Electric Co BRPG1201W-TR is a surface mount LED component.

  • Shape: Rectangular with a flat top
  • Size: 1.50mm x 2.50mm
  • LED Color: Colorless
  • Lens Transparency: Clear
  • Configuration: Independent
  • Forward Voltage (Green): 2.1V
  • Forward Voltage (Red): 1.7V
  • Viewing Angle (Green): 156°
  • Viewing Angle (Red): 149°
  • Millicandela Rating (Green): 4.8mcd
  • Millicandela Rating (Red): 12.8mcd
  • Status: Active
  • Packaging: Reel
