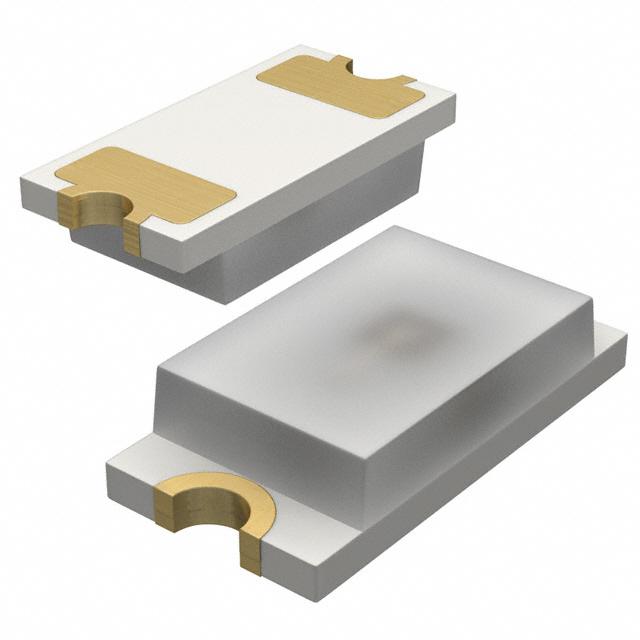

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Optoelectronics
Manufacturer Rohm Semiconductor
Packaging Reel - TR
Status Active
Color Red
Lens Color White
Lens Transparency Diffused
Millicandela Rating 100mcd
Lens Style/Size Rectangle with Flat Top, 1.20mm x 0.80mm
Forward Voltage 2.1V
Current - Test 20mA
Mounting SMD (SMT)
Wavelength - Dominant 624nm
Case / Package 0603 (1608 Metric)
Height (Max) 0.46mm
Win Source Part Number 1098468-SML-E12UWT86
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Industrial, Power Management
Ultra Librarian 3D Model Ultra Librarian SML-E12UWT86 CAD Model

Description

The Rohm Semiconductor SML-E12UWT86 is a red SMD (SMT) with a forward voltage of 2.1V and millicandela rating of 100mcd.

  • Manufacturer: Rohm Semiconductor
  • LED Color: Red
  • Mounting Style: SMD (SMT)
  • Forward Voltage: 2.1V
  • Millicandela Rating: 100mcd
  • Viewing Angle: -
  • Wavelength-Dominant: 624nm
  • Package Type: 0603 (1608 Metric)
  • Technology: Optoelectronics
  • Lens Color: White
  • Transparency: Diffused
  • Lens Style/Size: Rectangle with Flat Top, 1.20mm x 0.80mm
  • Operating Temperature Range: -40°C to 85°C
  • Status: Active
  • Popularity: Medium
  • Applications: Industrial and Power Management
