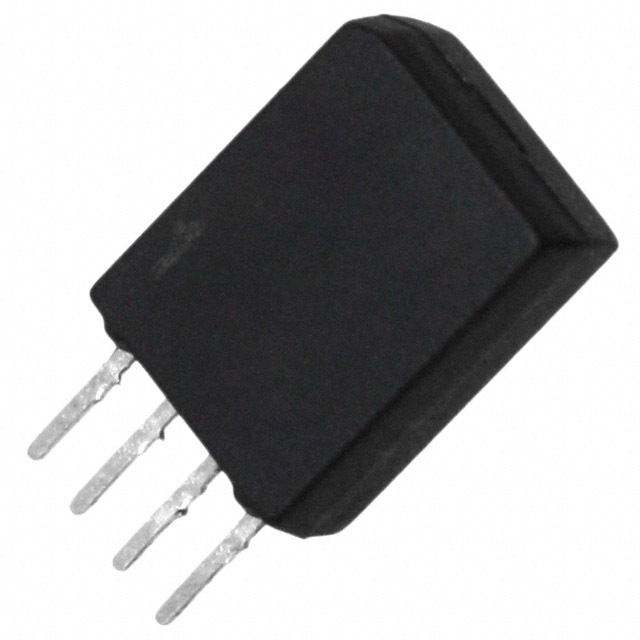

Same model may have multiple batches, images only for reference.
UMS05-1A80-75D Standex-Meder Electronics – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

UMS05-1A80-75D

Part No UMS05-1A80-75D
Manufacturer Standex-Meder Electronics
Catalog Reed Relays
Description RELAY REED SPST 500MA 5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RelaysReed Relays
Manufacturer Standex-Meder Electronics
Series UMS
Packaging Tube
Part Status Active
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 500 mA
Switching Voltage 170VAC, 170VDC - Max
Coil Current 12.5 mA
Coil Type Non Latching
Features Diode
Termination Style PC Pin
Must Operate Voltage 3.75 VDC
Must Release Voltage 0.5 VDC
Operate Time 0.2 ms
Release Time 0.1 ms
Operating Temperature -20°C ~ 85°C
Coil Resistance 400 Ohms
Ultra Librarian 3D Model Ultra Librarian UMS05-1A80-75D CAD Model
