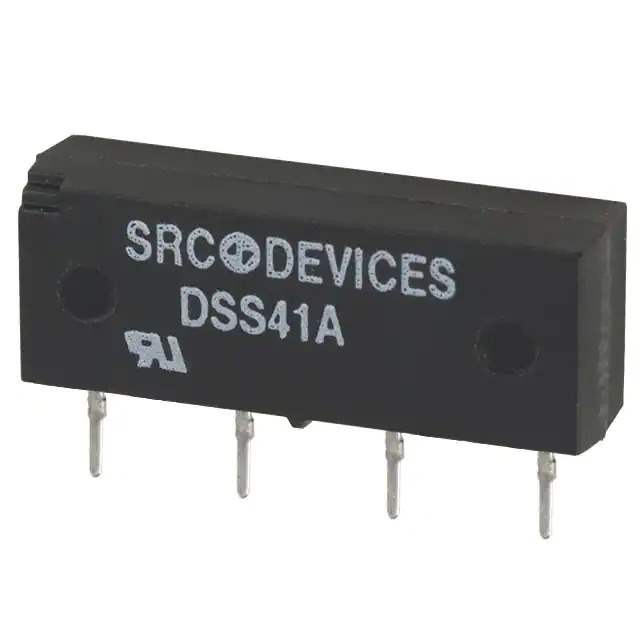

DSS41A05B Real Image
Same model may have multiple batches, images only for reference.

DSS41A05B

Part No DSS41A05B
Manufacturer Coto Technology
Catalog Reed Relays
Description RELAY REED SPST 500MA 5V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Reed Relays
Mfr Coto Technology
Series DSS4
Package Tube
Product Status Obsolete
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 500 mA
Switching Voltage 200VAC, 200VDC - Max
Coil Current 10 mA
Coil Type Non Latching
Features Diode
Termination Style PC Pin
Must Operate Voltage 3.75 VDC
Must Release Voltage 0.8 VDC
Operate Time 0.5 ms
Release Time 0.5 ms
Temperature Range - Operating -40°C ~ 85°C
Coil Resistance 500 Ohms
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.41.0030
Win Source Part Number 917688-DSS41A05B
Ultra Librarian 3D Model Ultra Librarian DSS41A05B CAD Model

Description

The DSS41A05B is a reed relay from Coto Technology. It is part of the DSS4 series and features a PC pin termination style.

  • Series: DSS4
  • Termination Style: PC pin
  • Contact Form: single-pole, single-throw (SPST-NO)
  • Coil Resistance: 500 Ohms
  • Coil Voltage: 5VDC
  • Coil Current: 10 mA
  • Contact Rating: 500 mA
  • Switching Voltage: 200VAC or 200VDC
  • Mounting: through-hole
  • Package: tube
  • Package Quantity: 25 pcs
  • Temperature Range: -40°C to 85°C
  • ECCN: EAR99
  • Status: obsolete product line
