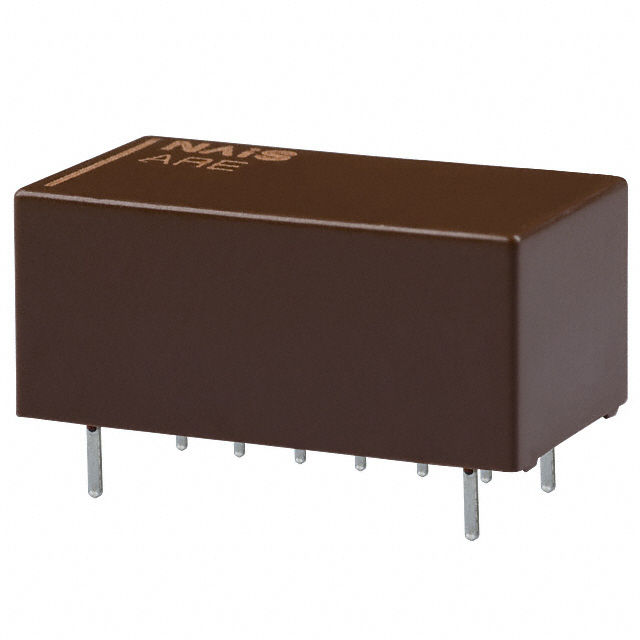

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Product Status Obsolete
Coil Type Non Latching
Coil Current 66.7 mA
Coil Voltage 3VDC
Contact Form SPDT (1 Form C)
Contact Rating (Current) 500 mA
Switching Voltage 30VDC - Max
Must Operate Voltage 2.25 VDC
Must Release Voltage 0.3 VDC
Operate Time 10 ms
Release Time 5 ms
Mounting Type Surface Mount
Termination Style Gull Wing
Temperature Range - Operating -40°C ~ 70°C
Package Tube
Supply and Demand Status Shortage
Win Source Part Number 1549630-ARE13A03
Ultra Librarian 3D Model Ultra Librarian ARE13A03 CAD Model
