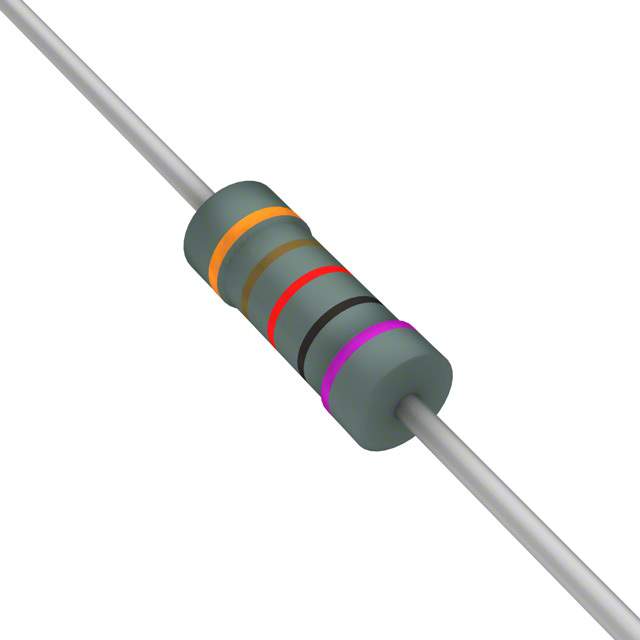

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Resistors
Manufacturer Stackpole Electronics Inc.
Packaging AMMO PACKAGE
Status Active
Resistance (Ohms) 312
Tolerance ±0.1%
Power (Watts) 0.25W, 1/4W
Composition Metal Film
Features Flame Retardant Coating, Safety
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C to 155°C
Case / Package Axial
Number of Terminations 2
Win Source Part Number 1016189-RNF14BAE312R
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian RNF14BAE312R CAD Model

Description

The Stackpole Electronics Inc. RNF14BAE312R is a metal film resistor with a power (watts) of 0.25W, 1/4W and a resistance (ohms) of 312.

  • Manufacturer: Stackpole Electronics Inc.
  • Power (Watts): 0.25W, 1/4W
  • Resistance (Ohms): 312
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Case/Package: Axial
  • Popularity: Medium
  • Supply and Demand Status: Balanced
  • Features: Flame retardant coating, safety certified
  • Status: Active
  • Operating Temperature Range: -55°C to 155°C
  • Terminations: 2
  • Category: Resistors
  • Packaging: Ammo
