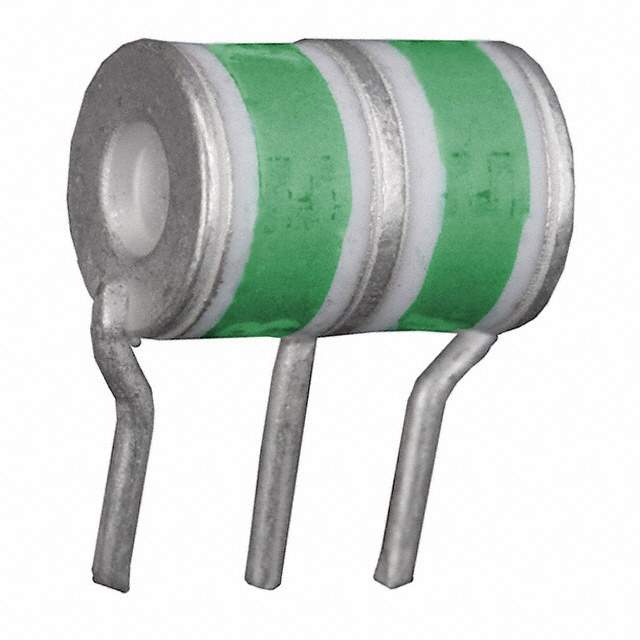

2026-09-C2LF Real Image
Same model may have multiple batches, images only for reference.

2026-09-C2LF

Part No 2026-09-C2LF
Manufacturer Bourns Inc.
Catalog Gas Discharge Tube Arresters (GDT)
Description GDT 90V 20KA 3 POLE THROUGH HOLE / Gas Discharge Tube 90 V 20000A (20kA) ±20% 3 Pole Through Hole
Datasheet
2026-09-C2LF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Gas Discharge Tube Arresters (GDT)
Mfr Bourns Inc.
Series TRIGARD® 2026
Package Tray
Voltage - DC Spark Over (Nom) 90 V
Impulse Discharge Current (8/20µs) 20000A (20kA)
Tolerance ±20%
Number of Poles 3
Fail Short No
Mounting Type Through Hole
Package / Case Axial Cylinder, 3 Lead (Radial Bend)
Base Product Number 2026
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.30.8000
Other Names 202609C2LF
Standard Package 100
Win Source Part Number 1001498-2026-09-C2LF
Ultra Librarian 3D Model Ultra Librarian 2026-09-C2LF CAD Model

Description

The 1001498-2026-09-C2LF is a gas discharge tube arrester from Bourns Inc.

  • Series: TRIGARD® 2026
  • Voltage DC Spark Over: 90 V
  • Mounting Type: Through hole
  • Poles: 3
  • Packaging: Tray
  • Impulse Discharge Current (8/20µs): 20000A (20kA)
  • REACH Status: Unaffected
  • HTSUS Code: 8536.30.8000
