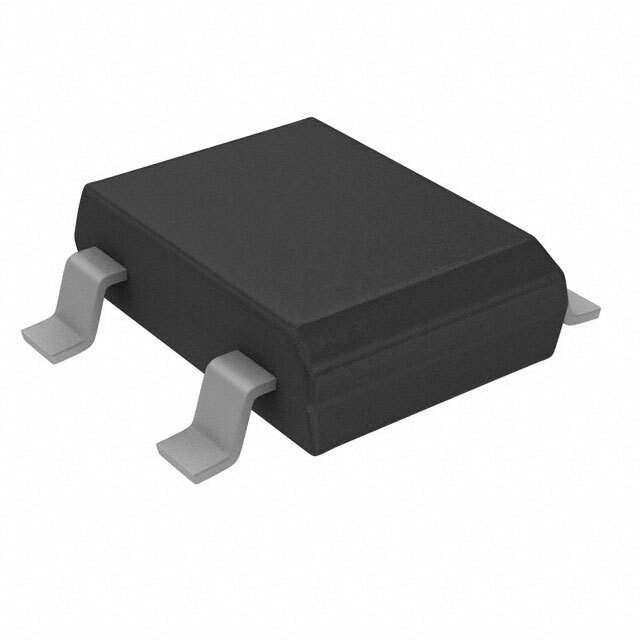

DB101S Real Image
Same model may have multiple batches, images only for reference.

DB101S

Part No DB101S
Manufacturer SMC Diode Solutions
Catalog Bridge Rectifiers
Description BRIDGE RECT 1PHASE 50V 1A DB-S
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Bridge Rectifiers
Mfr SMC Diode Solutions
Package Tape & Reel
Product Status Active
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Max) 50 V
Current - Average Rectified (Io) 1 A
Voltage - Forward (Vf) (Max) @ If 1.1 V @ 1 A
Current - Reverse Leakage @ Vr 5 µA @ 50 V
Temperature Range - Operating -55°C ~ 150°C (TJ)
Mounting Type Surface Mount
Package / Case 4-SMD, Gull Wing
Supplier Device Package DB-S
Base Product Number DB101
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 584095-DB101S
Ultra Librarian 3D Model Ultra Librarian DB101S CAD Model

Description

The 584095-DB101S is a single phase bridge rectifier diode with a voltage rating of 50V and an average rectified current of 1A.

  • Voltage Rating: 50V
  • Average Rectified Current: 1A
  • Forward Voltage: 1.1V @ 1A
  • Reverse Leakage Current: 5μA @ 50V
  • Mounting Type: Surface Mountable
  • Package: 4-SMD, gull wing
  • Technology: Not specified
  • Capacitance: Not specified
  • Operating Temperature Range: Not specified
  • Manufacturer: SMC Diode Solutions
  • Status: Active
