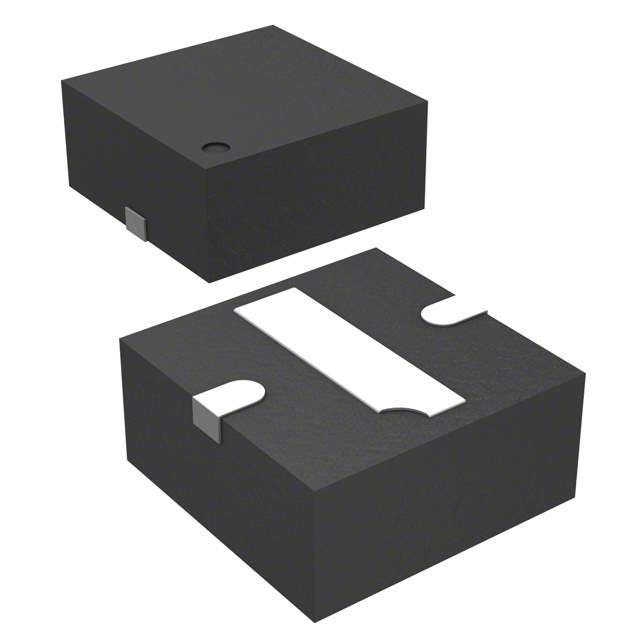

The CLA4609-086LF is a silicon PIN diode limiter manufactured by Skyworks Solutions Inc. It's designed to provide robust receiver protection in various RF and microwave systems. Its key function is to limit the power reaching sensitive receiver components, preventing damage from high-power signals.

Applications:

• Radar Systems: Protecting low-noise amplifiers (LNAs) from high-power radar pulses.
• Communication Receivers: Limiting interference and preventing damage from strong out-of-band signals.
• Electronic Warfare (EW) Systems: Providing receiver protection against jamming signals.
• Test and Measurement Equipment: Protecting sensitive input stages of spectrum analyzers and other instruments.
• Wireless Infrastructure: Safeguarding base station receivers from transient power surges.

Features:

• Low Insertion Loss: Minimizes signal attenuation in the normal operating range.
• Fast Response Time: Quickly limits the power when a high-power signal is detected.
• High Power Handling Capability: Can withstand high-power levels without damage.
• Surface Mount Package: Facilitates automated assembly and reduces board space.
• Lead-Free (RoHS Compliant): Meets environmental regulations.

Benefits:

• Receiver Protection: Prevents damage to sensitive receiver components from high-power signals.
• Improved System Reliability: Enhances the reliability and longevity of RF and microwave systems.
• Enhanced Dynamic Range: Allows receivers to operate effectively in the presence of strong signals.
• Simplified Design: Easy to integrate into existing circuit designs.

Additional Details:

The CLA4609-086LF typically exhibits a low insertion loss (e.g., less than 0.5 dB) in the operating frequency range. It has a high power handling capability, typically several watts CW. The limiting threshold and response time are key parameters specified in the datasheet. The device is typically packaged in a small surface mount package, such as an SOT-23 or similar. Specific performance characteristics, such as IP3 and reverse recovery time, are detailed in the product datasheet. The PIN diode limiter operates by changing its impedance in response to the RF power level, effectively attenuating high-power signals while allowing low-power signals to pass through with minimal attenuation.
