Same model may have multiple batches, images only for reference.

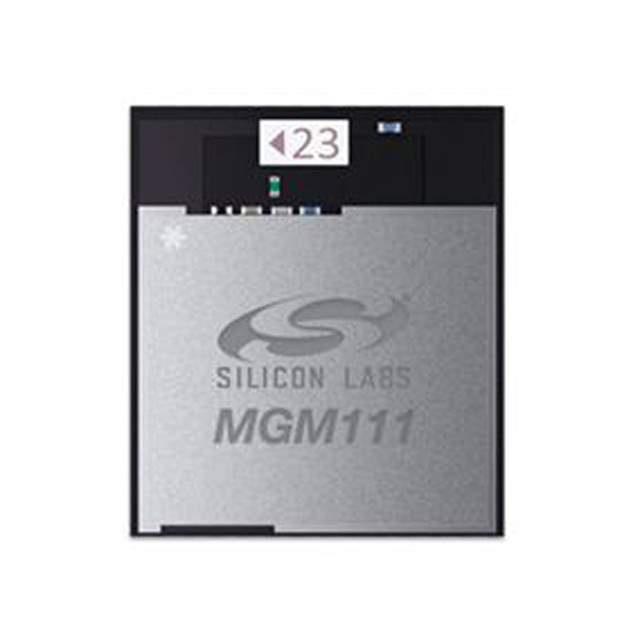

MGM111A256V2R Real Image
Same model may have multiple batches, images only for reference.

MGM111A256V2R

Part No MGM111A256V2R
Manufacturer Silicon Labs
Catalog RF Transceiver Modules
Description RX TXRX MODULE 802.15.4 CHIP SMD  /  802.15.4 Zigbee® Transceiver Module 2.4GHz Integrated, Chip Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>RF Transceiver Modules and Modems
Mfr Silicon Labs
Series Mighty Gecko
Package Tape & Reel
Product Status Not For New Designs
RF Family/Standard 802.15.4
Protocol Zigbee®
Modulation DSSS, O-QPSK
Frequency 2.4GHz
Data Rate 250kbps
Power - Output 10dBm
Sensitivity -99dBm
Serial Interfaces I2C, I2S, SPI, UART
Antenna Type Integrated, Chip
Utilized IC / Part EFR32
Memory Size 256kB Flash, 32kB RAM
Voltage - Supply 1.85V ~ 3.8V
Current - Receiving 9.8mA
Current - Transmitting 8.2mA
Mounting SMD (SMT)
Temperature Range - Operating -40°C ~ 85°C
Package / Case 31-SMD Module
Base Product Number MGM111
MSL Level 3 (168 Hours)
ECCN 5A992C
HTSUS 8517.62.0090
Other Names 336-4866-6,336-4866-2,MGM111A256V2R-ND,336-4866-1
Standard Package 1,000
Win Source Part Number 1316352-MGM111A256V2R
Ultra Librarian 3D Model Ultra Librarian MGM111A256V2R CAD Model

Description

The MGM111A256V2R is an RF transceiver module that operates on a frequency of 2.4GHz and uses the Zigbee® protocol.

  • Frequency: 2.4GHz
  • Protocol: Zigbee®
  • Data Rate: 250kbps
  • Flash Memory: 256KB
  • RAM: 32KB
  • Antenna: Integrated chip antenna
  • Sensitivity: -99dBm
  • Power Output: 10dBm
  • Current Consumption (Tx): 8.2mA
  • Current Consumption (Rx): 9.8mA
  • Package: 31-SMD module
  • Serial Interfaces: I2C, I2S, SPI, and UART
  • Voltage Supply: 1.85V to 3.8V
  • Temperature Range: -40°C to 85°C
