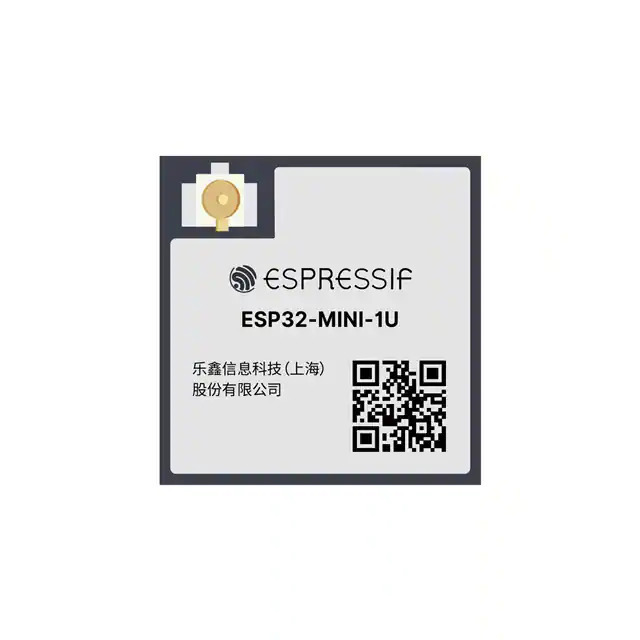

ESP32-MINI-1U-N4 Espressif
Same model may have multiple batches, images only for reference.

ESP32-MINI-1U-N4

Part No ESP32-MINI-1U-N4
Manufacturer Espressif
Catalog RF Transceiver Modules
Description SMD MODULE, ESP32-U4WDH WITH 4 M
Datasheet
ESP32-MINI-1U-N4 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Espressif Systems
Series ESP32
Package Tape & Reel
Product Status Active
RF Family/Standard Bluetooth, WiFi
Protocol 802.11b/g/n, Bluetooth v4.2 +EDR, Class 1, 2 and 3
Modulation 8DPSK, DQPSK
Frequency 2.4GHz
Data Rate 150Mbps
Power - Output 19.5dBm
Sensitivity -97dBm
Serial Interfaces ADC, GPIO, I²C, I²S, SDIO, SPI, PWM, UART
Antenna Type Antenna Not Included, U.FL
Utilized IC / Part ESP32-U4WDH
Memory Size 4MB Flash, 448kB ROM, 536kB SRAM
Voltage - Supply 3V ~ 3.6V
Current - Receiving 112mA ~ 118mA
Current - Transmitting 260mA ~ 379mA
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 85°C (TA)
Package / Case 55-SMD Module
Base Product Number ESP32
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN 5A992C
HTSUS 8517.62.0090
Win Source Part Number 1370886-ESP32-MINI-1U-N4
Ultra Librarian 3D Model Ultra Librarian ESP32-MINI-1U-N4 CAD Model

Description

The ESP32-MINI-1U-N4 is a RF transceiver module and modem designed by Espressif Systems.

  • Frequency: 2.4GHz
  • Protocols: Bluetooth and WiFi
  • Voltage Supply: 3V to 3.6V
  • Memory: 4MB Flash, 448kB ROM, and 536kB SRAM
  • Data Rate: 150Mbps
  • Mounting Type: Surface Mount
  • Package: 55-SMD module
  • Serial Interfaces: ADC, GPIO, I²C, I²S, SDIO, SPI, PWM, and UART
  • Power Output: 19.5dBm
  • Sensitivity: -97dBm
