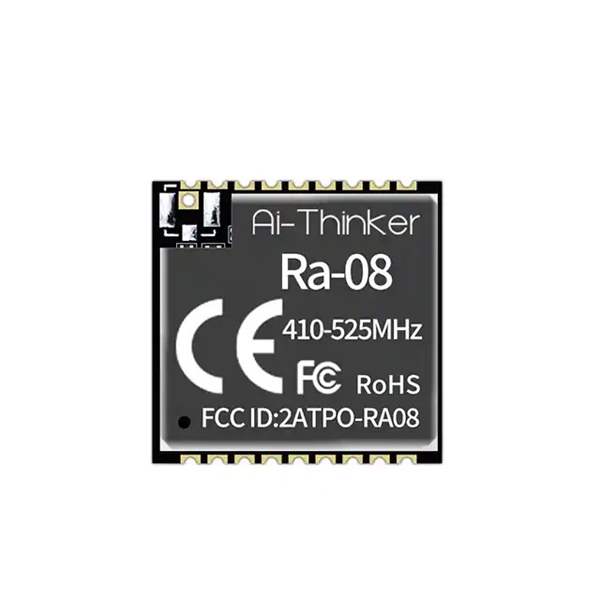

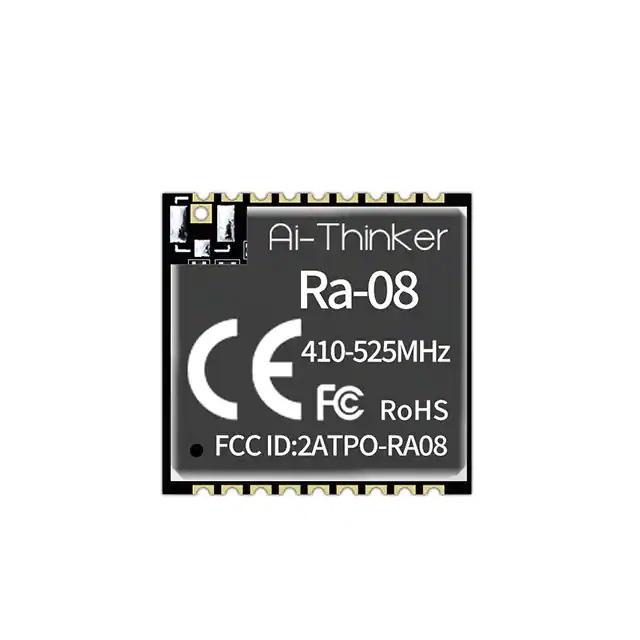

RA-08 Ai-Thinker
Same model may have multiple batches, images only for reference.

RA-08

Part No RA-08
Manufacturer Ai-Thinker
Catalog RF Transceiver Modules
Description LORAWAN MODULE,ASR6601CB,470MHZ
Datasheet
RA-08 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Transceiver Modules and Modems
Mfr Ai-Thinker
Series -
Package Tape & Reel
Product Status Active
RF Family/Standard General ISM < 1GHz
Protocol LoRa™
Modulation BPSK, FSK, GFSK, GMSK, MSK
Frequency 410MHz ~ 525MHz
Data Rate -
Power - Output 21dBm
Sensitivity -138dBm
Serial Interfaces ADC, GPIO, I²C, I²S, PWM, SPI, UART
Antenna Type Antenna Not Included, I-PEX
Utilized IC / Part -
Memory Size 128kB Flash, 16kB SRAM
Voltage - Supply 2.7V ~ 3.6V
Current - Receiving 9.5mA
Current - Transmitting 115mA
Mounting Type Surface Mount
Temperature Range - Operating -40°C ~ 85°C
Package / Case 18-SMD Module
MSL Level 1 (Unlimited)
ECCN 5A991G
HTSUS 8517.62.0090
Win Source Part Number 1370943-RA-08
Ultra Librarian 3D Model Ultra Librarian RA-08 CAD Model

Description

The 1370943-RA-08 is a high-performance RF Transceiver Module designed for long-range communication.

  • Frequency Range: 410MHz to 525MHz
  • Application: General ISM
  • Package: 18-SMD
  • Voltage Supply: 2.7V to 3.6V
  • Output Power: 21dBm
  • Sensitivity: -138dBm
  • Serial Interfaces: ADC, GPIO, I²C, I²S, PWM, SPI, UART
  • Modulation: BPSK, FSK, GFSK, GMSK, MSK
  • Memory Size (Flash): 128kB
  • Memory Size (SRAM): 16kB
  • Product Status: Active
